HG2405SD-135-RTP

Antennas RF Overview

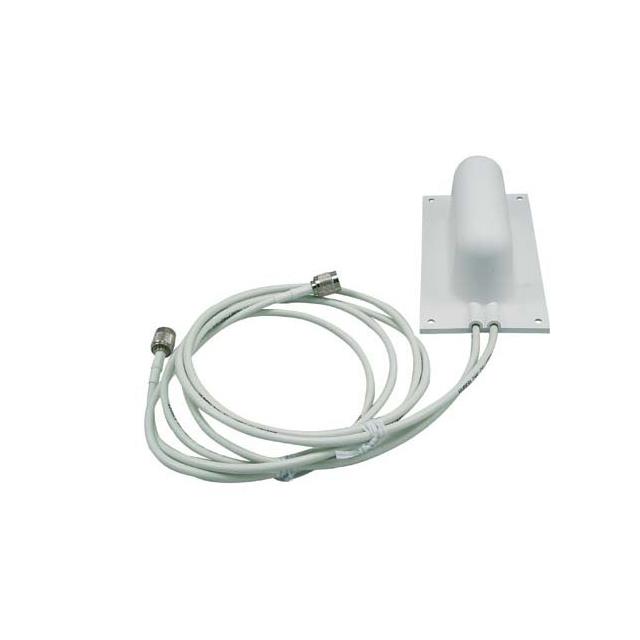

The L-com HG2405SD-135-RTP is a 2.4 GHz dual spatial diversity MIMO antenna designed for 802.11b/g/n Wi-Fi applications. It features a 5 dBi gain and operates within the 2.4 GHz to 2.5 GHz frequency range. The unit includes RP-TNC connectors with 135 cm pigtails, facilitating direct integration into wireless systems requiring high-performance signal reception.

Antennas RF Feature Summary

• Dual spatial diversity architecture supporting MIMO configurations
• Optimized for 802.11n wireless standards
• Integrated RP-TNC connectors with extended pigtail length

Antennas RF Applications

• 802.11b/g/n Wi-Fi network infrastructure
• Bluetooth connectivity systems
• ISM band wireless communications
• WLAN deployment solutions

Antennas RF Procurement Notes

Verify the specific suffix RTP confirms the inclusion of RP-TNC connectors and the designated 135 cm pigtail length. Ensure compatibility with existing system interfaces before procurement. Cross-reference the manufacturer datasheet to confirm current production status and RoHS compliance details for the specific batch.

Antennas RF Selection Notes

Select this model when dual spatial diversity is required for improved signal reliability in 2.4 GHz environments. The integrated connector length simplifies installation without additional cabling. Consider the physical dimensions and mounting requirements relative to the target application space.

Antennas RF Part Context

This component belongs to the HyperLink Wireless series by L-com, focusing on flat panel MIMO antennas. The HG series typically offers omni-directional or spatial diversity options for robust wireless performance across various industrial and commercial networking scenarios.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify interface compatibility if considering alternative models from other manufacturers.
