HG2405U-NMO

Antennas RF Overview

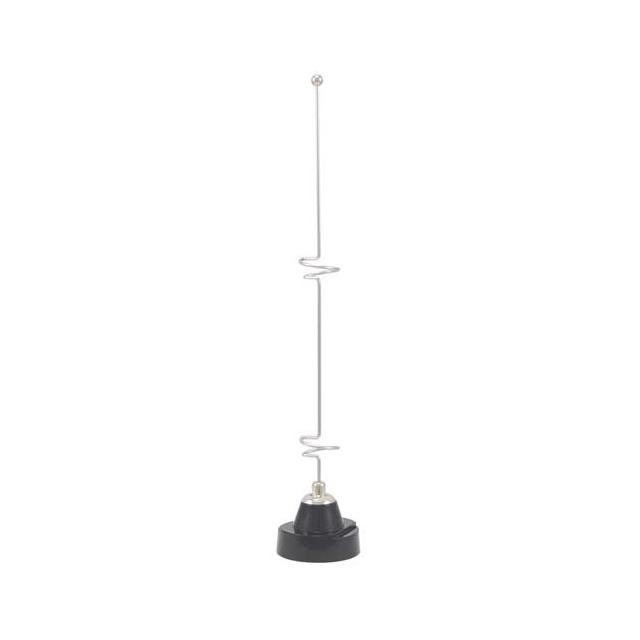

The L-com HG2405U-NMO is a 2.4 GHz omnidirectional mobile whip antenna designed for vehicular applications. It operates within the 2.4 GHz to 2.5 GHz frequency range, supporting 802.11b/g, Bluetooth, Wi-Fi, and WLAN standards. The antenna features a 5 dBi gain and an NMO magnetic mount interface. Key electrical specifications include a maximum power handling of 100 W and a Voltage Standing Wave Ratio (VSWR) of 1.5. The physical design includes a straight whip configuration with a maximum height of 8.000 inches (203.20 mm).

Antennas RF Feature Summary

• Omnidirectional radiation pattern optimized for multipoint mobile connectivity.
• NMO magnetic base enables rapid installation on vehicle metal surfaces without drilling.
• Compact whip design accommodates tight clearance environments in mobile units.

Antennas RF Applications

• Mobile Wi-Fi and WLAN data transmission systems.
• Bluetooth communication links in vehicular networks.
• 802.11b/g compliant wireless infrastructure.

Antennas RF Procurement Notes

Verify that the specific part number matches the required connector type and mounting style. Confirm regulatory compliance status such as RoHS requirements against project specifications. Ensure the NMO mount compatibility aligns with existing vehicle hardware. Review datasheet parameters for power handling and frequency range suitability before finalizing procurement orders.

Antennas RF Selection Notes

Select this model when a low-profile, magnetically mounted solution is required for 2.4 GHz mobile communications. The NMO interface ensures secure attachment to ferrous vehicle surfaces. Consider the 5 dBi gain and 100 W power rating for standard mobile radio applications. Evaluate the physical dimensions against available space constraints on the target platform.

Antennas RF Part Context

This component belongs to the HG series of RF antennas manufactured by L-com. It is categorized under RF and wireless components, specifically within the RF antenna subcategory. The product is actively listed as being in production and available for new designs. It serves as a specialized solution for mobile wireless connectivity needs.

Antennas RF Replacement Considerations

The HG2405UR-NMO is a documented variant featuring a radome enclosure. Verify if environmental protection requirements necessitate the radome version over the standard whip design. Both models share similar electrical characteristics but differ in physical construction.
