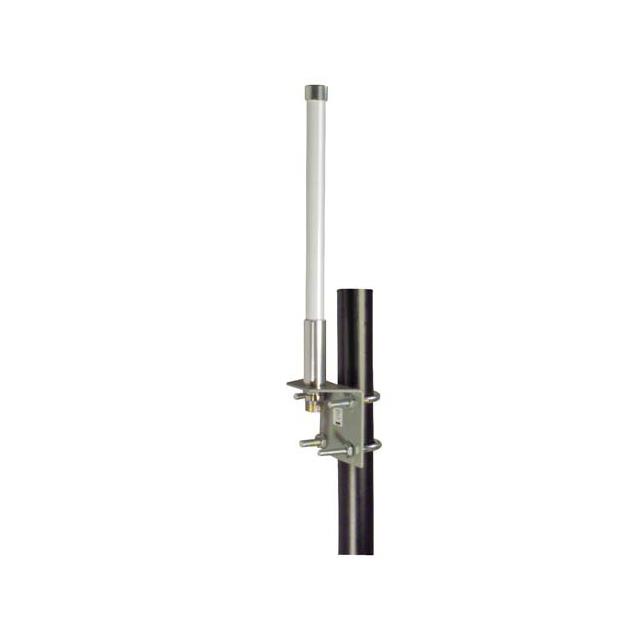

HG2405UP-NF is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANTOMNI 2.4GHZ 5.5DBI. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for HG2405UP-NF
- Description：ANTOMNI 2.4GHZ 5.5DBI
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：Bluetooth, General ISM, WiFi
- Frequency Group：Wide Band
- Frequency (Center/Band)：2.4GHz
- Frequency Range：-
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：-
- Return Loss：-
- Gain：5dBi
- Features：-
- Termination：N Type Female
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Mast Mount
- Height (Max)：11.700" (297.18mm)
- Applications：802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN
- Power - Max：-
Antennas RF datasheet and documents for HG2405UP-NF
Antennas RF Overview
The L-com HG2405UP-NF is a passive omnidirectional Wi-Fi antenna designed for the 2.4 GHz ISM band, supporting IEEE 802.11b/g/n standards and Bluetooth. It features a gain of 5 dBi (or 5.5 dBi per some listings) and utilizes an N-type female connector. The unit is constructed with collinear brass elements housed in a UV-stable white fiberglass radome, ensuring durability for all-weather outdoor operation. The sealed end cap provides environmental protection.
Antennas RF Feature Summary
- Omnidirectional radiation pattern optimized for 2.4 GHz wireless LANs
- Durable UV-stable fiberglass radome with sealed construction for outdoor use
- Collinear brass internal elements for consistent signal performance
- N-type female connector interface for standard mounting
Antennas RF Applications
- IEEE 802.11b/g/n wireless LAN deployments
- Bluetooth network infrastructure
- Public wireless hotspot applications
- Outdoor RF antenna installations requiring weather resistance
Antennas RF Procurement Notes
Verify the specific datasheet version to confirm exact gain specifications, as sources vary between 5 dBi and 5.5 dBi. Ensure the N-type female connector matches the mating hardware requirements. Confirm that the UV-stable fiberglass radome meets the environmental exposure criteria for the intended installation site.
Antennas RF Selection Notes
Select this model for compact outdoor Wi-Fi coverage needs where omnidirectional distribution is required. The N-type connector suits standard mast or pole mounting systems. Consider the physical dimensions and weight constraints for the mounting structure, as it is designed for lightweight yet robust deployment.
Antennas RF Part Context
Part of the HyperGain MINI PRO Series, which offers economical high-performance solutions for the 2.4 GHz band. This series includes variants like the HG2409UP-NF with higher gain. The HG2405UP-NF serves as a mid-gain option within the lineup, balancing size and performance for general wireless applications.
Antennas RF Replacement Considerations
The HG2409UP-NF is a documented similar style antenna within the same product family, offering different gain characteristics. Verify connector type and frequency range compatibility when substituting. No other direct substitute part numbers are confirmed in the provided data.
