HG2405UR-NMO

Antennas RF Overview

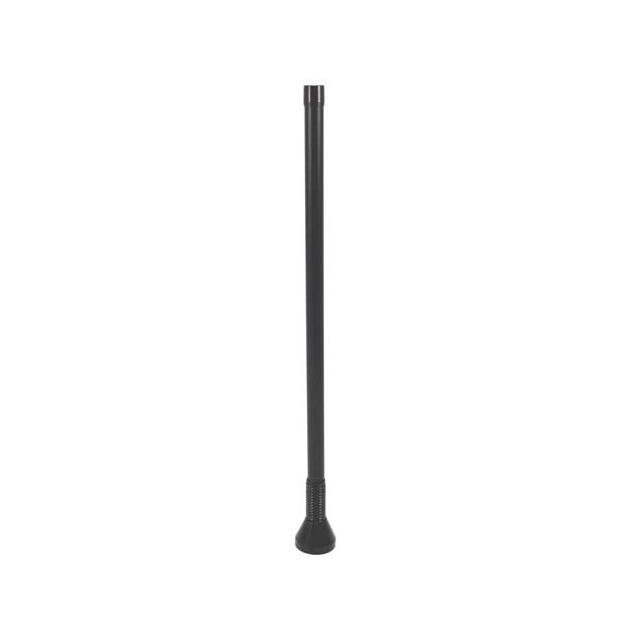

The L-com HG2405UR-NMO is a 2.4 GHz omni-directional mobile antenna designed for the ISM band. It features a 5 dBi gain and operates within a frequency range of 2.4 GHz to 2.5 GHz, with a center frequency of 2.45 GHz. The unit utilizes an NMO connector mount and employs magnetic installation. Key electrical specifications include a maximum power handling capacity of 100 W and a VSWR of 1.5. The physical height is 8.0 inches (203.2 mm).

Antennas RF Feature Summary

• Compact and lightweight design suitable for mobile applications.
• Shock-absorbing flexible base enhances durability.
• Weather-proof construction for outdoor reliability.
• Aesthetic black finish for professional appearance.

Antennas RF Applications

• IEEE 802.11b/g wireless LANs
• Public wireless hotspots
• Bluetooth multipoint systems

Antennas RF Procurement Notes

Verify that the specific suffix 'UR' matches the required radome-enclosed and shock-absorbing base configuration, as standard variants may lack these physical attributes. Confirm the NMO connector type aligns with existing vehicle or equipment mounting hardware. Ensure environmental ratings meet operational requirements for intended deployment locations.

Antennas RF Selection Notes

Select this model when a compact form factor and aesthetic integration are prioritized alongside standard mobile RF performance. The elevated feed design supports versatile placement on vehicles or structures. Consider the 5 dBi gain profile against larger fixed-mount alternatives if higher directivity is not required for the specific link budget.

Antennas RF Part Context

This component belongs to the HyperLink Wireless series by L-com, targeting the 2.4 GHz ISM band. It serves as a specialized solution for mobile Wi-Fi and Bluetooth connectivity, distinguishing itself through its enclosed radome design and flexible mounting capabilities compared to rigid whip antennas.

Antennas RF Replacement Considerations

HG2405U-NMO
