HG2406DPU

Antennas RF Overview

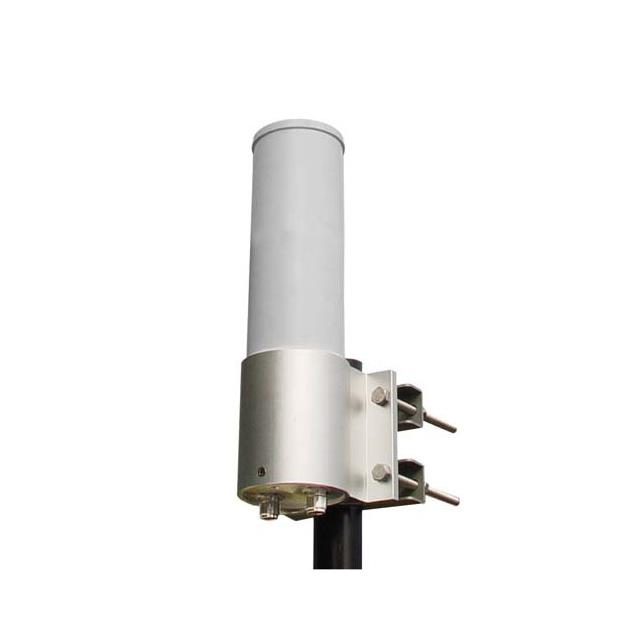

The L-com HG2406DPU is a dual-polarity omnidirectional RF antenna designed for the 2.4GHz to 2.5GHz frequency range. It provides a gain of 6dBi and operates with a 50-ohm impedance. The unit features an N-type female connector for installation. It supports vertical and horizontal polarization within a single enclosure, suitable for MIMO, WLAN, WiMAX, WISP, and WiFi applications.

Antennas RF Feature Summary

• Combines vertical and horizontal polarization in a single enclosure
• Dual-polarity omnidirectional radiation pattern
• High gain performance at 6dBi
• Designed for MIMO and wireless LAN systems

Antennas RF Applications

• MIMO wireless networks
• WLAN infrastructure
• WiMAX base stations
• WISP deployments
• WiFi access points

Antennas RF Procurement Notes

Verify the specific datasheet version and mechanical dimensions against the target installation requirements. Confirm that the N-type female connector interface matches the existing cable assembly or radio port. Ensure the operating frequency range aligns with the intended network standard. Check environmental ratings if outdoor deployment is planned.

Antennas RF Selection Notes

Select this model when dual-polarization diversity is required to improve signal reliability in multipath environments. The 6dBi gain offers a balance between coverage area and interference rejection. It is appropriate for fixed wireless links where omnidirectional coverage is needed without sacrificing polarization isolation.

Antennas RF Part Context

This component belongs to the HyperLink series of antennas from L-com. It is engineered for robust performance in professional wireless communication setups. The design integrates dual polarization to enhance link quality for modern digital modulation schemes used in contemporary wireless standards.

Antennas RF Replacement Considerations

Direct substitutes must maintain the 2.4-2.5GHz frequency range, 6dBi gain, and N-type female connector. Verify that any replacement also supports dual-polarity operation to preserve MIMO functionality. Mechanical mounting constraints and VSWR specifications should be compared to ensure compatibility.
