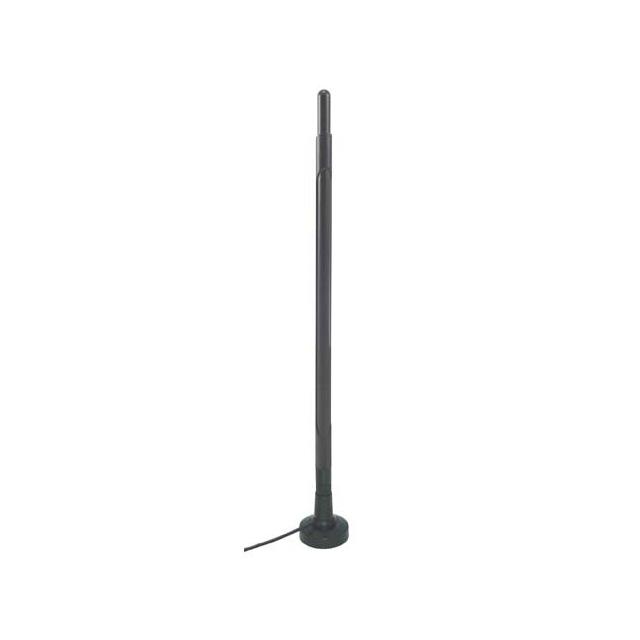

HG2407MGRD-RSP

$38.79

Description：ANT MAGMNT 2.4 GHZ 7 DBI
Series：HG
Mfr：L-com
Package：Bag

SKU:0a3924acb253 Category: RF Antennas Brand: L-com

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HG2407MGRD-RSP is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANT MAGMNT 2.4 GHZ 7 DBI. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for HG2407MGRD-RSP

Description：ANT MAGMNT 2.4 GHZ 7 DBI
Series：HG
Mfr：L-com
Package：Bag
RF Family/Standard：Bluetooth, General ISM, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.45GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：2
Return Loss：-
Gain：7dBi
Features：Cable - 1.524m
Termination：RP-SMA
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Magnetic
Height (Max)：14.500" (368.30mm)
Applications：802.11b/g, Bluetooth, ISM, Wi-Fi, WLAN
Power - Max：50 W

Antennas RF datasheet and documents for HG2407MGRD-RSP

HG2407MGRD-RSP

Antennas RF Overview

The L-com HG2407MGRD-RSP is a passive omnidirectional RF antenna designed for the 2.4 to 2.5 GHz frequency range, supporting WiFi, WLAN, Bluetooth, and ISM applications. It features a 7 dBi gain rating and utilizes a coaxial sleeve design with a rubber duck element. The unit includes a magnetic base mount and a 5-foot (1.5m) cable terminated with an RP-SMA plug connector. This configuration ensures broad coverage for wireless LAN connectivity.

Antennas RF Feature Summary

Omnidirectional radiation pattern for broad coverage
Integrated magnetic base for flexible mounting
Coaxial sleeve construction with rubber duck element

Antennas RF Applications

WiFi and WLAN network installations
Bluetooth device connectivity
ISM band wireless communications

Antennas RF Procurement Notes

Verify the specific connector type and cable length against project requirements before ordering. Confirm that the RP-SMA plug interface matches the receiving equipment port. Ensure the magnetic mount provides sufficient holding force for the intended installation environment. Cross-reference the datasheet for environmental operating limits.

Antennas RF Selection Notes

Select this model when a high-gain omnidirectional solution is required for 2.4 GHz bands. The integrated magnetic mount simplifies temporary or semi-permanent deployment without drilling. Consider the 5-foot cable length for optimal placement relative to the access point. Verify compatibility with RP-SMA interfaces rather than standard SMA connectors.

Antennas RF Part Context

This component belongs to the HyperLink Wireless series of passive antennas from L-Com. It is part of a family of 2.4 GHz solutions designed for robust wireless LAN performance. The model distinguishes itself through the inclusion of a magnetic base and specific cabling, differentiating it from fixed-mount variants in the same product line.
