HG2407MGRD-RTP

$43.56

Description：ANTMAGMNT 2.4GHZ 7DBI
Series：HG
Mfr：L-com
Package：Bag

SKU:9c9db7881022 Category: RF Antennas Brand: L-com

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HG2407MGRD-RTP is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANTMAGMNT 2.4GHZ 7DBI. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for HG2407MGRD-RTP

Description：ANTMAGMNT 2.4GHZ 7DBI
Series：HG
Mfr：L-com
Package：Bag
RF Family/Standard：Bluetooth, General ISM, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.45GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：2
Return Loss：-
Gain：7dBi
Features：Cable - 1.524m
Termination：RP-SMA
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Magnetic
Height (Max)：14.500" (368.30mm)
Applications：802.11b/g, Bluetooth, ISM, Wi-Fi, WLAN
Power - Max：50 W

Antennas RF datasheet and documents for HG2407MGRD-RTP

HG2407MGRD-RTP

Antennas RF Overview

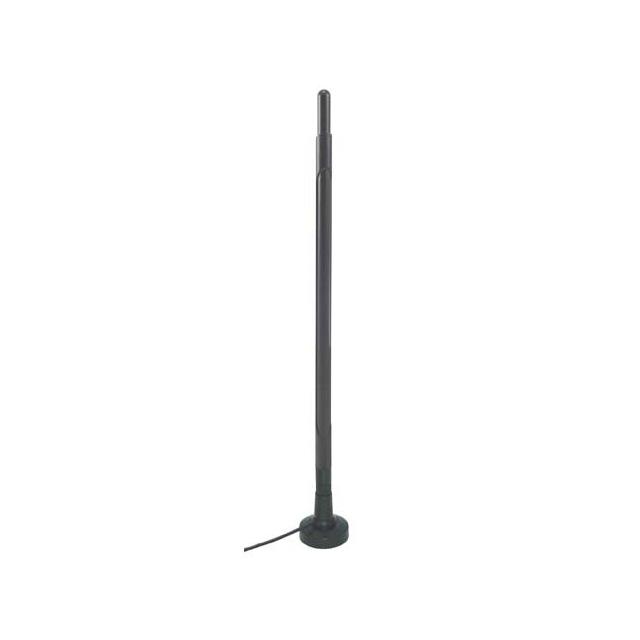

The HG2407MGRD-RTP is a passive omnidirectional rubber duck antenna designed for the 2.4 GHz frequency band, offering a gain of 7 dBi. It features a coaxial sleeve design to provide broad coverage and utilizes an RP-SMA plug connector for termination. The unit includes a 1.524-meter cable and employs a magnetic mounting type, with a maximum height of 368.30 mm. The device supports a maximum power input of 50 W.

Antennas RF Feature Summary

Omnidirectional radiation pattern for broad signal coverage
Magnetic mounting base for flexible installation
Coaxial sleeve construction for durability

Antennas RF Applications

Wireless local area network (WLAN) deployments
Industrial wireless sensor networks
Point-to-point communication links

Antennas RF Procurement Notes

Verify that the specific model suffix corresponds to the required connector type, as variations exist within the product line. Confirm the operating frequency range aligns with the intended application spectrum. Ensure the mounting surface is compatible with the magnetic base for secure attachment during operation.

Antennas RF Selection Notes

Select this component when a fixed-gain omnidirectional solution is required for 2.4 GHz environments. Consider the magnetic mount requirement versus other attachment methods. Evaluate the cable length and connector interface compatibility with existing radio equipment before procurement.

Antennas RF Part Context

This antenna belongs to L-Com's passive antenna series, specifically engineered for high-performance wireless applications. It is part of a family of rubber duck antennas designed for reliable connectivity in various industrial and commercial settings.
