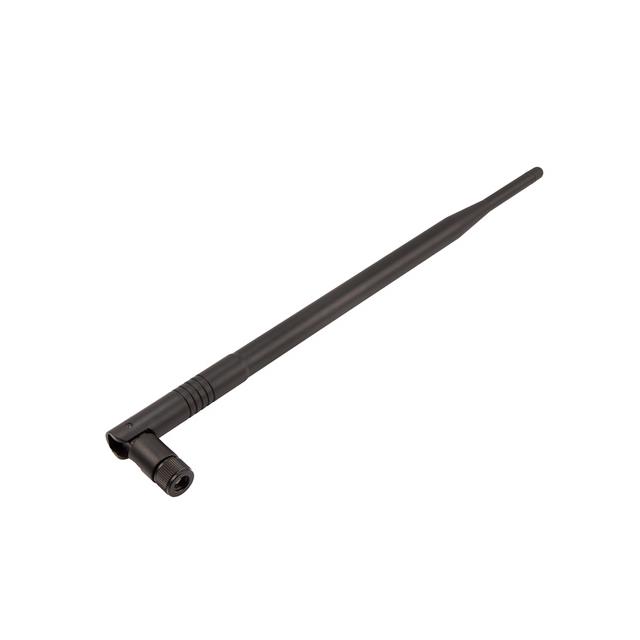

HG2407RD-1-RSP is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANTRUBBER DUCK 2.4GHZ 7DBI. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for HG2407RD-1-RSP
- Description：ANTRUBBER DUCK 2.4GHZ 7DBI
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：Bluetooth, General ISM, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.45GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Whip, Right Angle
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：7dBi
- Features：Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
- Termination：RP-SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount, Magnetic
- Height (Max)：11.575" (294.00mm)
- Applications：802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN
- Power - Max：10 W
Antennas RF datasheet and documents for HG2407RD-1-RSP
Antennas RF Overview
The L-com HG2407RD-1-RSP is a high-performance omnidirectional rubber duck antenna designed for the 2.4 to 2.5 GHz frequency range, supporting WiFi, WLAN, Bluetooth, and ISM applications. It features a 7 dBi gain and a 50-ohm impedance with an RP-SMA connector interface. The coaxial sleeve design ensures broad coverage and flexibility. The unit measures approximately 13.06 inches in length, providing reliable signal transmission for wireless networking and industrial sensor networks.
Antennas RF Feature Summary
- Omnidirectional radiation pattern for broad coverage
- Flexible rubber duck construction for easy installation
- Coaxial sleeve design for durability
Antennas RF Applications
- WiFi and WLAN network connectivity
- Bluetooth device integration
- ISM band industrial sensor networks
Antennas RF Procurement Notes
Verify the specific part number suffix against official L-com documentation to ensure correct connector type and gain specifications. Confirm that the RP-SMA interface matches the host equipment requirements. Check current lifecycle status as new or obsolete through authorized distributors before finalizing procurement orders.
Antennas RF Selection Notes
Select this model when a flexible, high-gain omnidirectional antenna is required for 2.4 GHz wireless systems. Ensure the RP-SMA male connector compatibility with the receiving device. Consider the physical length of 13.06 inches for spatial constraints during installation in tight enclosures or mobile platforms.
Antennas RF Part Context
This component belongs to the L-com ANTRubber series of flexible antennas. It is engineered for robust performance in wireless communication environments. The product line emphasizes ease of use and reliable signal integrity across various RF applications including consumer electronics and industrial IoT deployments.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing system requirements before considering alternative models from other manufacturers.
