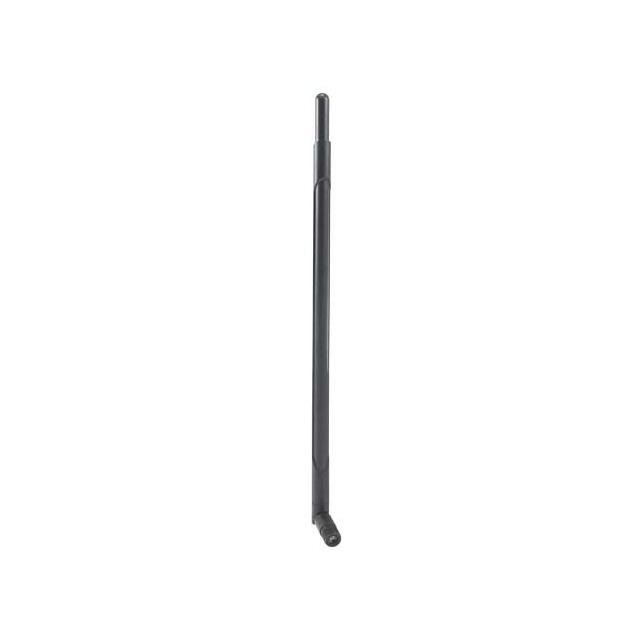

HG2407RD-RSP is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANTRUBBER DUCK 2.4GHZ 7DBI. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for HG2407RD-RSP
- Description：ANTRUBBER DUCK 2.4GHZ 7DBI
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：General ISM, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.45GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Whip, Tilt
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：7dBi
- Features：-
- Termination：RP-TNC
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：14.900" (378.46mm)
- Applications：802.11b/g/n, ISM
- Power - Max：50 W
Antennas RF datasheet and documents for HG2407RD-RSP
Antennas RF Overview
The HG2407RD-RSP is a high-performance omnidirectional RF antenna designed for the 2.4 to 2.5 GHz frequency band, supporting WiFi, WLAN, Bluetooth, and ISM applications. It features a 7 dBi gain rating and utilizes a coaxial sleeve design to provide broad coverage. The unit employs an RP SMA connector interface with a 50-ohm impedance specification. This rubber duck style antenna is engineered for reliable signal transmission in wireless communication systems requiring stable connectivity within the designated spectrum.
Antennas RF Feature Summary
- Omnidirectional radiation pattern ensures broad coverage area
- Coaxial sleeve construction supports stable signal integrity
- RP SMA connector interface facilitates standard integration
Antennas RF Applications
- WiFi network infrastructure deployment
- WLAN system connectivity enhancement
- Bluetooth device range extension
- ISM band wireless communication links
Antennas RF Procurement Notes
Verify the specific connector type and polarity requirements against your existing equipment interfaces before ordering. Confirm that the operating frequency range aligns with your intended application spectrum. Ensure the impedance matching is compatible with your system components to maintain optimal signal performance and prevent reflection issues during installation.
Antennas RF Selection Notes
Choose this model when omnidirectional coverage is required for 2.4 GHz wireless protocols. The 7 dBi gain offers enhanced range compared to standard low-gain alternatives. The RP SMA interface suits devices requiring this specific connector configuration. Consider environmental factors and mounting options to ensure optimal placement for maximum signal effectiveness.
Antennas RF Part Context
This component belongs to L-com's RF antenna product line, specifically focusing on wireless communication solutions. The HG2407RD-RSP is categorized under general-purpose antennas suitable for various industrial and commercial wireless applications. It represents a standard solution for extending the range of 2.4 GHz devices without requiring complex alignment or directional positioning.
Antennas RF FAQ
What is the primary radiation pattern of this antenna?
The HG2407RD-RSP features an omnidirectional radiation pattern, providing uniform signal coverage around its axis.
Which wireless standards does this antenna support?
It is designed to support WiFi, WLAN, Bluetooth, and ISM band applications within the 2.4 to 2.5 GHz frequency range.
