HG2407RD-RTP

Antennas RF Overview

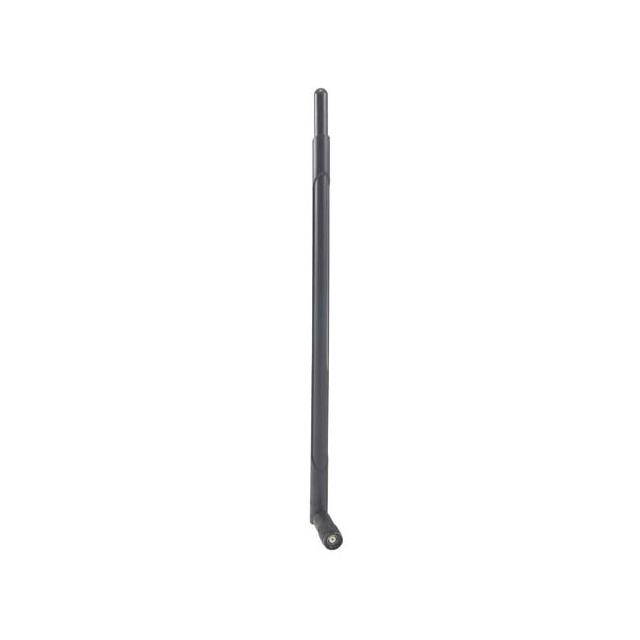

The L-com HG2407RD-RTP is a 2.4 GHz omnidirectional rubber duck antenna designed for wireless applications. It features a 7 dBi gain and operates within the 2.4 to 2.5 GHz frequency range. The component utilizes an RP-TNC connector interface and maintains a 50-ohm impedance. Constructed with a coaxial sleeve design, it serves as a high-performance replacement for standard detachable antennas on wireless access points.

Antennas RF Feature Summary

• Provides broad coverage through omnidirectional radiation patterns
• Features a durable rubber duck construction with coaxial sleeve design
• Offers enhanced signal gain compared to standard detachable antennas

Antennas RF Applications

• Wireless access point upgrades
• Wi-Fi network expansion
• Bluetooth device connectivity enhancement
• ISM band radio applications

Antennas RF Procurement Notes

Verify that the target equipment supports RP-TNC connectors rather than standard TNC or SMA interfaces. Confirm compatibility with 2.4 GHz operational bands. Ensure the mounting environment accommodates the physical dimensions of the rubber duck style antenna. Cross-reference part numbers to distinguish between RP-TNC and other connector variants like RP-SMA or N-type.

Antennas RF Selection Notes

Select this model when higher gain is required over standard 2.2 dB antennas. Choose based on the specific need for RP-TNC male/female polarity matching. Consider the omnidirectional pattern for general coverage needs. Evaluate the rugged rubber duck form factor for indoor or protected outdoor use cases requiring flexibility.

Antennas RF Part Context

This antenna belongs to L-com's HG2407RD series of 2.4 GHz RF components. Variants in this family include models with different connector types such as RP-SMA (HG2407RD-RSP) and N-type (HG2407RD-NM). The series shares similar gain specifications but differs in interface compatibility and mounting styles.

Antennas RF Replacement Considerations

Confirmed substitute part numbers are not explicitly documented in available public datasheets. Users should verify mechanical fit and electrical compatibility when replacing existing antennas. Check for polarity differences between RP-TNC and standard TNC connectors to ensure proper connection.
