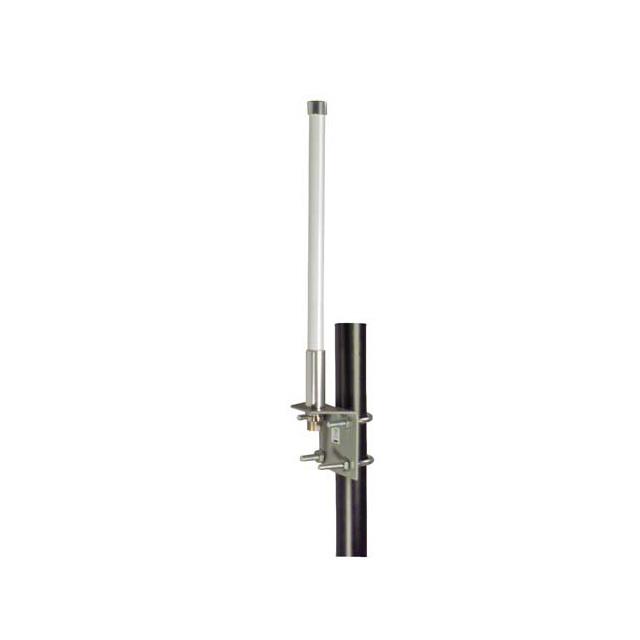

HG2407UP-NF is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANTOMNI 2.4GHZ 6.5DBI. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for HG2407UP-NF
- Description：ANTOMNI 2.4GHZ 6.5DBI
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：Bluetooth, General ISM, WiFi
- Frequency Group：Wide Band
- Frequency (Center/Band)：2.4GHz
- Frequency Range：-
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：-
- Return Loss：-
- Gain：6.5dBi
- Features：-
- Termination：N Type Female
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Bracket Mount
- Height (Max)：13.800" (350.52mm)
- Applications：802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN
- Power - Max：-
Antennas RF datasheet and documents for HG2407UP-NF
Antennas RF Overview
The HG2407UP-NF is a HyperGain omnidirectional RF antenna manufactured by L-com, designed for the 2.4 GHz ISM band. It features a gain of 6.5 dBi and operates within the 2.4 GHz to 2.5 GHz frequency range. The unit utilizes an N-type female connector for interfacing and employs a straight whip antenna type with bracket mounting capabilities. Constructed for durability, it supports IEEE 802.11b/g/n standards and Bluetooth applications.
Antennas RF Feature Summary
- Omnidirectional radiation pattern optimized for wireless LAN coverage
- Compact and lightweight structural design suitable for various installation environments
- Robust construction engineered for extended outdoor operational use
Antennas RF Applications
- IEEE 802.11b/g/n wireless LANs
- Bluetooth connectivity systems
- Public wireless hotspot deployments
Antennas RF Procurement Notes
Verify the specific connector gender suffix in the part number against system requirements. Confirm that the bracket mounting style aligns with physical infrastructure constraints. Ensure environmental ratings meet site conditions. Cross-reference datasheet specifications for mechanical dimensions prior to integration planning.
Antennas RF Selection Notes
Select this model when a compact omnidirectional solution is required for 2.4 GHz networks. Consider its bracket mount configuration for fixed installations. Evaluate the 6.5 dBi gain against link budget requirements. Compare physical dimensions against available mounting space constraints.
Antennas RF Part Context
This component belongs to the HG series of HyperGain antennas from L-com. The series focuses on providing enhanced performance in compact form factors for industrial and commercial wireless applications. The HG2407UP-NF specifically addresses the 2.4 GHz ISM band requirements.
Antennas RF Replacement Considerations
HG2407UP-NM serves as a variant with different connector gender. Verify interface compatibility before substitution. No other direct functional equivalents are documented in the provided source material.
