HG2407UP-NM

Antennas RF Overview

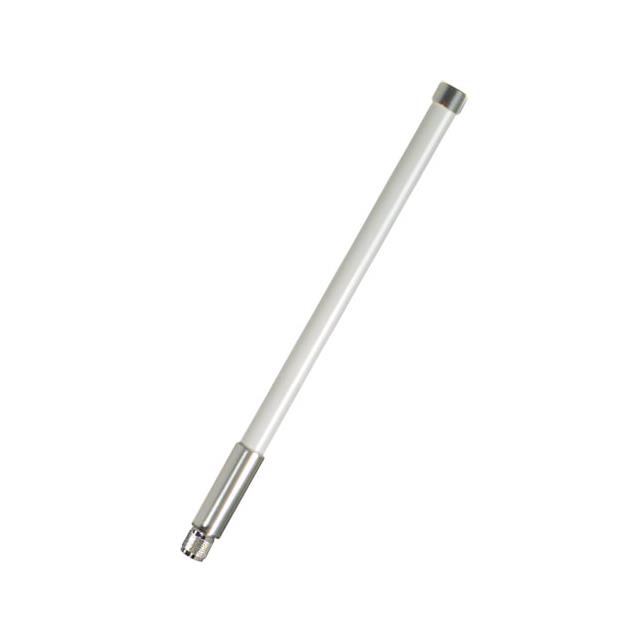

The HG2407UP-NM is an omnidirectional RF antenna designed for the 2.4 GHz ISM band, supporting 802.11b/g/n, Bluetooth, CDMA, and Wi-Fi applications. It features a gain of 6.5 dBi with a 50-ohm impedance and utilizes an integral N-type male connector. The unit has a maximum power handling capacity of 100 W and a VSWR of 1.5. Constructed with a UV-stable fiberglass radome, it includes sealed end caps and drain holes to prevent condensation. The antenna measures approximately 6.5 inches in length.

Antennas RF Feature Summary

• Integral N-Male connector design
• UV-stable fiberglass radome construction
• Condensation-resistant sealed end cap with drain holes

Antennas RF Applications

• Wi-Fi networks
• Bluetooth systems
• WLAN deployments
• CDMA communications

Antennas RF Procurement Notes

Verify the specific connector type and mounting configuration required for your installation. Confirm that the 6.5 dBi gain and 100 W power rating align with your system's link budget and safety requirements. Ensure compatibility with existing N-type male interfaces before finalizing procurement.

Antennas RF Selection Notes

Select this model when a compact, durable omnidirectional solution is needed for 2.4 GHz environments. The UV-stable radome makes it suitable for outdoor use where weather resistance is critical. Consider the integral connector for simplified integration without additional adapters.

Antennas RF Part Context

This component belongs to L-com's HyperLink Wireless series, which focuses on economical yet high-performance antennas for the 2.4 GHz ISM band. The series offers various form factors, including whip and rubber duck styles, catering to diverse indoor and outdoor wireless communication needs.

Antennas RF Replacement Considerations

The HG2405U-NMO serves as a related alternative within the same product family, offering similar frequency coverage but with different physical characteristics and gain specifications.
