HG2408MGUR-NM

Antennas RF Overview

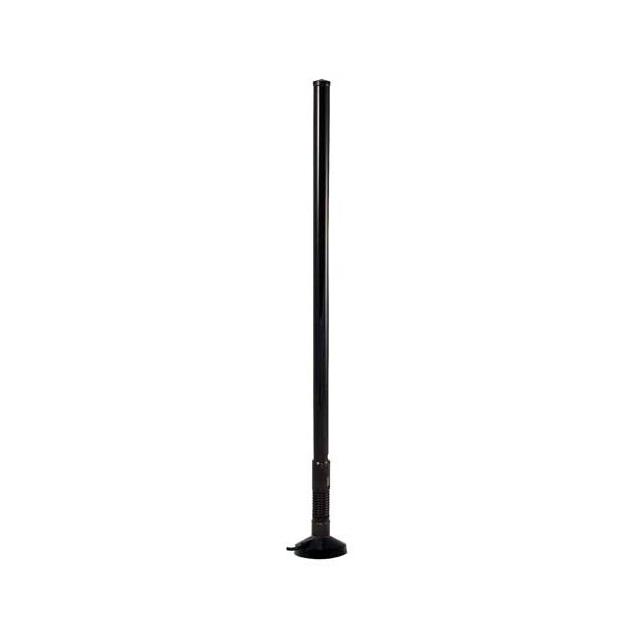

The HG2408MGUR-NM is a high-performance omnidirectional antenna designed for the 2.4 GHz ISM band, featuring an 8 dBi gain rating. It utilizes a flexible radome enclosure to protect internal components while maintaining signal integrity. The unit includes a magnetic mount base for rapid deployment and secure attachment to ferrous surfaces. A 10-foot cable length provides connection flexibility, terminating in an N-type male connector compatible with standard RF interfaces.

Antennas RF Feature Summary

• Omnidirectional radiation pattern optimized for 2.4 GHz ISM band applications
• Flexible radome construction ensures environmental durability and component protection
• Integrated magnetic mounting base facilitates quick installation on metal surfaces
• N-type male connector interface supports direct integration with standard RF systems

Antennas RF Applications

• Wireless LAN (WLAN) infrastructure deployments
• Wi-Fi network expansion and coverage enhancement
• Bluetooth device connectivity solutions
• Industrial, Scientific, and Medical (ISM) band communications

Antennas RF Procurement Notes

Verify the specific connector gender and cable length requirements against system specifications before ordering. Confirm that the magnetic mount base is suitable for the intended installation surface material and structural integrity. Ensure compatibility with existing N-type female ports on receiving equipment. Check regulatory compliance status for the target operational region.

Antennas RF Selection Notes

Select this model when elevated feed omnidirectional coverage is required at 2.4 GHz. The 8 dBi gain offers improved range compared to lower-gain alternatives. The magnetic mount allows for temporary or semi-permanent placement without drilling. Consider the 10-foot cable length for routing constraints between the antenna and radio unit.

Antennas RF Part Context

This component belongs to L-com's HyperLink series of RF antennas. It is part of a family of products designed for wireless networking and industrial communication applications. The HG2408MGUR-NM specifically addresses the need for robust, easy-to-install antennas in the 2.4 GHz spectrum, complementing other models like the HG2408UR-NM which may lack the magnetic mount feature.

Antennas RF Replacement Considerations

The HG2408UR-NM serves as a related variant within the same product line, offering similar electrical performance but potentially differing in mounting configuration.
