HG2408MGUR-RSP

Antennas RF Overview

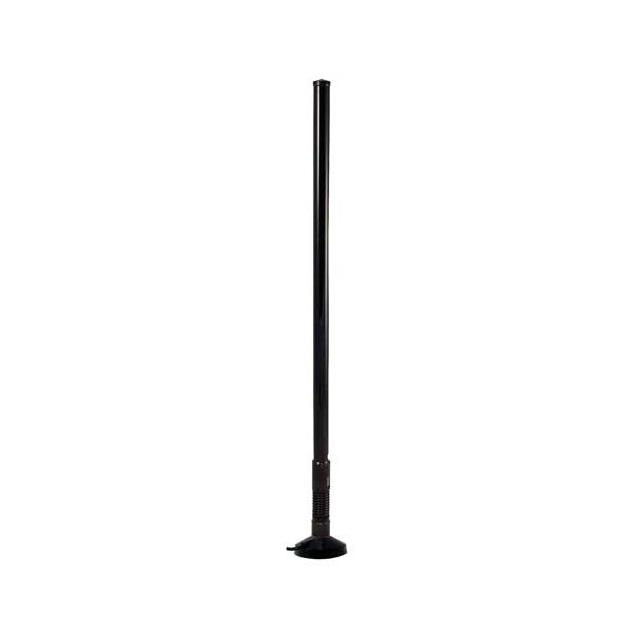

The HG2408MGUR-RSP is a 2.4 GHz omnidirectional RF antenna with an 8 dBi gain, designed for the ISM band including Wi-Fi and Bluetooth applications. It features a magnetic mount base for flexible installation and includes a 10-foot cable assembly terminated with an RP-SMA plug connector. The unit operates within the standard 2.4 GHz frequency range suitable for 802.11b/g/n wireless LAN environments.

Antennas RF Feature Summary

• Omnidirectional radiation pattern optimized for 2.4 GHz ISM band coverage
• Integrated magnetic mounting base for secure attachment to ferrous surfaces
• Pre-terminated with a 10-foot cable and RP-SMA plug connector

Antennas RF Applications

• Wireless LAN (WLAN) signal extension
• Bluetooth device connectivity enhancement
• Industrial IoT sensor network deployment

Antennas RF Procurement Notes

Verify that the RP-SMA plug connector matches the receiving equipment interface. Confirm the magnetic mount suitability for the intended surface material. Ensure the 10-foot cable length accommodates the specific installation geometry without strain.

Antennas RF Selection Notes

Select this model when a high-gain omnidirectional solution is required for 2.4 GHz systems. The magnetic mount offers rapid deployment compared to fixed brackets. The RP-SMA connector is standard for many consumer and industrial wireless modules.

Antennas RF Part Context

This part belongs to L-com's HyperGain series of compact, high-performance antennas. The suffix RSP specifically denotes the RP-SMA plug connector variant, distinguishing it from other connector types like N-Female or RP-TNC available in the same gain and frequency family.

Antennas RF Replacement Considerations

Direct substitutes include HG2408MGUR-NM (N-Male connector) and HG2408MGUR-RTP (RP-TNC Plug). Verify connector compatibility before substitution as electrical performance remains consistent across variants.
