HG2408P-NF

Antennas RF Overview

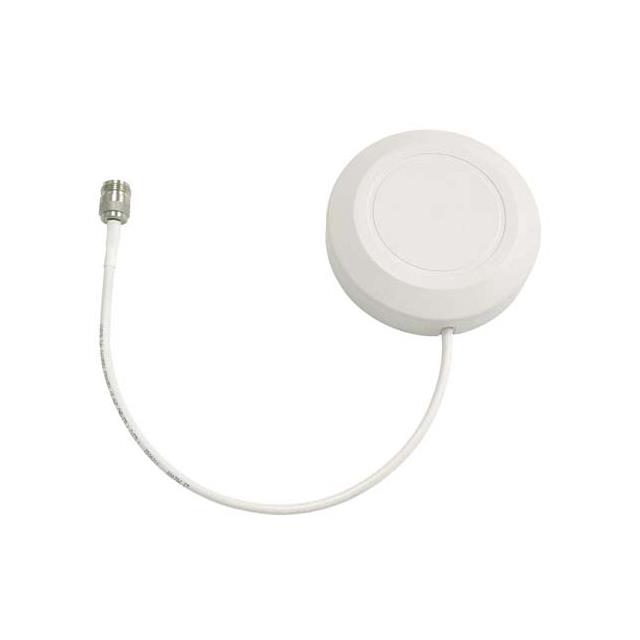

The HG2408P-NF is a compact, round WiFi patch antenna manufactured by L-com. It operates within the 2.4 GHz frequency band, specifically covering 2.4GHz to 2.5GHz, with a center frequency of 2.45GHz. The component provides an 8 dBi gain and maintains a maximum VSWR of 2. It features an N-type female connector and supports applications including 802.11b/g, Bluetooth, ISM, Wi-Fi, and WLAN. The antenna is designed for bracket mounting.

Antennas RF Feature Summary

• Compact round design resembling a smoke detector for discreet indoor installation
• Provides broad coverage with 8 dBi gain in the 2.4 GHz spectrum
• Features durable UV-stable and UL flame-rated radome construction

Antennas RF Applications

• Indoor 2.4 GHz wireless LAN deployments
• Wi-Fi network infrastructure
• Bluetooth connectivity systems
• ISM band applications

Antennas RF Procurement Notes

Verify the specific part number suffix to confirm the connector type matches project requirements. Ensure compatibility with existing N-type female interfaces. Confirm that the bracket mounting style aligns with the physical installation constraints of the target environment. Cross-reference datasheet specifications against system voltage and power handling needs before procurement.

Antennas RF Selection Notes

Select this model for applications requiring a low-profile, omnidirectional antenna solution. The round patch form factor offers aesthetic integration suitable for ceiling or wall mounts where visibility is a concern. Consider the 8 dBi gain level for standard range indoor coverage requirements. Verify that the N-type female interface is compatible with the connected transmission line hardware.

Antennas RF Part Context

This component belongs to the HyperGain HG2408P series from L-com. The series is characterized by compact round WiFi patch antennas designed for indoor use. The HG2408P-NF variant specifically denotes the configuration with an N-type female connector, distinguishing it from other connector options within the same product family.

Antennas RF Replacement Considerations

The HG2408U-NF is a related model offering similar 8 dBi gain and 2.4 GHz operation but utilizes a whip antenna design rather than a patch configuration. Substitution requires evaluating spatial constraints and mounting preferences between the round patch and whip styles.
