HG2408P-NM

Antennas RF Overview

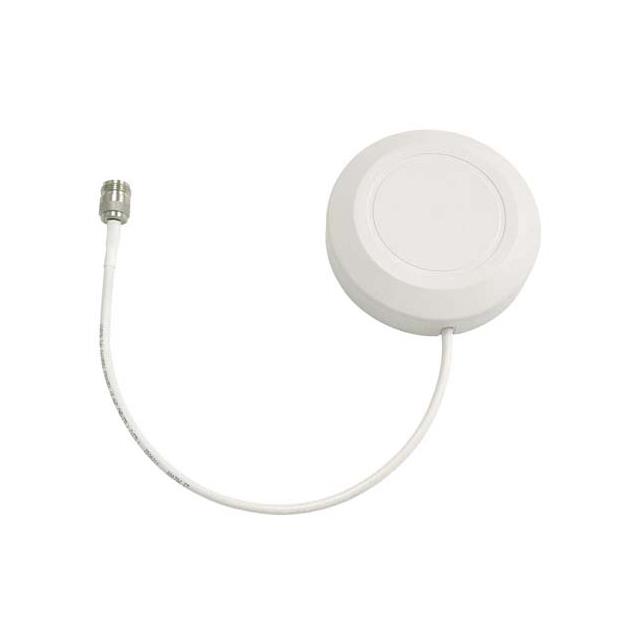

The HG2408P-NM is a compact round WiFi patch antenna manufactured by L-com, designed for indoor applications in the 2.4 GHz ISM band. It provides 8 dBi gain with broad coverage, supporting IEEE 802.11b, 802.11g, and 802.11n standards as well as Bluetooth and WLAN. The unit features an N-type male connector and utilizes through-hole mounting. Its smoke detector-like design allows for flat installation against walls or ceilings, accommodating both horizontal and vertical polarization configurations.

Antennas RF Feature Summary

• Compact round patch design suitable for discreet indoor placement
• Broad coverage capability with 8 dBi gain performance
• Flexible mounting options allowing flat wall or ceiling installation
• Supports dual polarization for horizontal or vertical signal orientation

Antennas RF Applications

• Indoor wireless local area network (WLAN) deployments
• Public wireless hotspot infrastructure
• IEEE 802.11b/g/n compliant communication systems
• Bluetooth connectivity integration
• ISM band industrial, scientific, and medical radio applications

Antennas RF Procurement Notes

Verify the specific connector gender and mounting style against project requirements before ordering. Confirm that the through-hole installation method aligns with the target PCB or chassis design. Ensure the operating frequency range matches the intended 2.4 GHz application spectrum. Check compatibility with existing RF cabling and interface standards to prevent connection mismatches during system integration.

Antennas RF Selection Notes

Choose this model for environments requiring low-profile antennas that blend into ceiling or wall fixtures. It is ideal for projects needing reliable 2.4 GHz performance without external protruding elements. Consider its polarization flexibility when planning signal distribution patterns. Evaluate the through-hole mounting constraint against available assembly space and structural support methods for secure attachment.

Antennas RF Part Context

This component belongs to the HyperGain HG2408P series of round WiFi patch antennas from L-com. The series is characterized by its compact form factor and suitability for indoor 2.4 GHz applications. The HG2408P-NM variant specifically denotes the inclusion of an N-type male connector, distinguishing it from other models in the family that may feature different interface types or mounting configurations.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement.
