HG2408U-NF

Antennas RF Overview

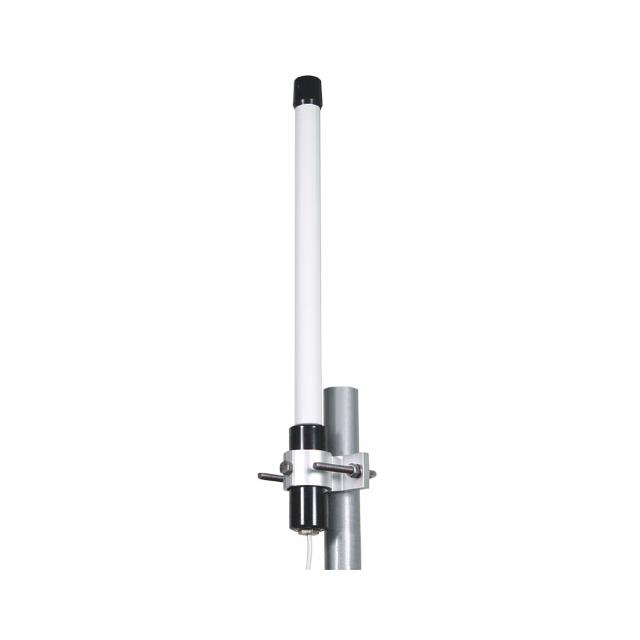

The L-com HG2408U-NF is a high-performance omnidirectional whip antenna designed for the 2.4 GHz ISM band, supporting 802.11b/g, Bluetooth, Wi-Fi, and WLAN applications. It features an 8 dBi gain and a maximum power rating of 100 W. The operating frequency range spans from 2.4 GHz to 2.5 GHz with a center frequency of 2.45 GHz. The antenna utilizes an N-type female connector and is intended for bracket mounting. Key electrical specifications include a VSWR of 2. The physical height is 16.850 inches (427.99 mm).

Antennas RF Feature Summary

• Omnidirectional radiation pattern optimized for wireless LAN and ISM band communications.
• High gain performance of 8 dBi within the compact HyperGain series design.
• Robust construction rated for maximum power handling up to 100 W.
• Standard N-type female connector interface for reliable RF connectivity.

Antennas RF Applications

• Wireless Local Area Network (WLAN) infrastructure deployment
• Bluetooth communication systems integration
• Industrial, Scientific, and Medical (ISM) band equipment
• General Wi-Fi signal transmission and reception

Antennas RF Procurement Notes

Verify the specific ordering suffix matches the required connector type and mounting hardware configuration. Confirm that the N-type female interface aligns with existing cable assemblies. Ensure the bracket mount style suits the installation environment. Check RoHS3 compliance status if environmental regulations apply. Validate the 100 W power rating against actual system operational levels to prevent damage.

Antennas RF Selection Notes

Select this model when high gain is required in a compact form factor for 2.4 GHz operations. The 8 dBi gain supports extended range compared to standard 2-5 dBi antennas. The N-type connector offers durability for frequent connection cycles. Consider the 16.85-inch height for clearance requirements during installation. Ideal for scenarios demanding robust performance in ISM band applications.

Antennas RF Part Context

This component belongs to the HyperGain HG series by L-com, focusing on high-performance wireless solutions. The HG2408U-NF specifically targets the 2.4 GHz market segment. It complements other antennas in the lineup by offering higher gain than basic models while maintaining a manageable size. The series is known for reliability in professional wireless networking environments.

Antennas RF Replacement Considerations

Direct substitutes may include other L-com HG series antennas with similar gain and connector types. Verify compatibility with existing N-type cables. Cross-reference part numbers like HG2408U variants if connector differences exist. Ensure replacement units maintain the 8 dBi gain specification for consistent network performance.
