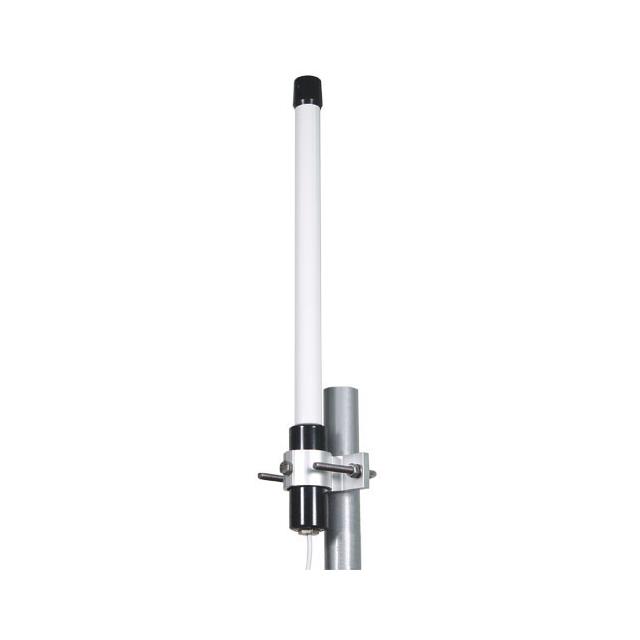

HG2408U-RSP

$102.21

Description：ANTMASTMNT OMNI 2.4GHZ 8DBI
Series：HG
Mfr：L-com
Package：Bag

SKU:5749fc2d11ac Category: RF Antennas Brand: L-com

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HG2408U-RSP is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANTMASTMNT OMNI 2.4GHZ 8DBI. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for HG2408U-RSP

Description：ANTMASTMNT OMNI 2.4GHZ 8DBI
Series：HG
Mfr：L-com
Package：Bag
RF Family/Standard：Bluetooth, Cellular, General ISM, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.45GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：2
Return Loss：-
Gain：8dBi
Features：-
Termination：Screw-Mount
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Mast Mount
Height (Max)：16.000" (406.40mm)
Applications：802.11b/g, Bluetooth, CDMA, ISM, Wi-Fi, WLAN
Power - Max：100 W

Antennas RF datasheet and documents for HG2408U-RSP

HG2408U-RSP

Antennas RF Overview

The L-com HG2408U-RSP is a HyperGain omnidirectional antenna designed for the 2.4 GHz ISM band, providing 8 dBi gain. It features an RP-SMA plug connector and is constructed with a compact form factor suitable for indoor wireless LAN applications. The unit supports 802.11b/g, Bluetooth, CDMA, and Wi-Fi protocols.

Antennas RF Feature Summary

Compact high-performance omnidirectional design
RP-SMA plug connector interface
Optimized for 2.4 GHz ISM band operations

Antennas RF Applications

Indoor wireless LAN deployments
Bluetooth connectivity systems
Commercial Wi-Fi installations

Antennas RF Procurement Notes

Verify the specific connector type matches system requirements, as suffixes like RSP denote RP-SMA plugs. Confirm operational frequency alignment with existing network infrastructure. Review official datasheets for mechanical dimensions and mounting specifications to ensure physical compatibility with intended installation environments.

Antennas RF Selection Notes

Select this model when high gain is required in a compact footprint for indoor use. The RP-SMA interface necessitates compatible cabling or adapters. Consider environmental factors and mounting constraints during selection to ensure optimal signal propagation within the target coverage area.

Antennas RF Part Context

This component belongs to the HyperGain series of antennas from L-com. The series focuses on delivering enhanced performance in space-constrained environments. The HG2408U variant specifically targets the 2.4 GHz spectrum, distinguishing it from dual-band or higher-frequency alternatives within the broader product catalog.
