HG2409MGRD-RSP

Antennas RF Overview

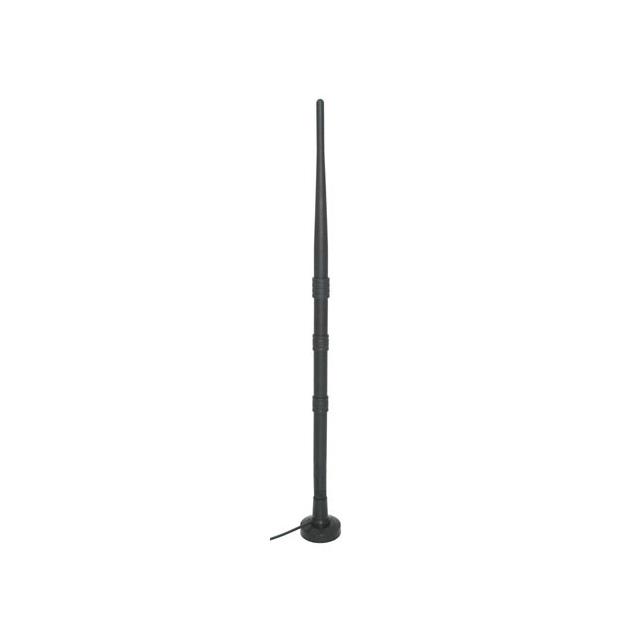

The L-com HG2409MGRD-RSP is a 2.4 GHz omnidirectional whip antenna designed for ISM, Wi-Fi, and Bluetooth applications. It features a rubber duck design with a straight reverse polarity SMA connector and includes a magnetic mount base. The antenna provides a gain of 9 dBi to enhance signal transmission distance and stability for handheld radios, vehicles, and base stations.

Antennas RF Feature Summary

• Omnidirectional radiation pattern for broad coverage
• Integrated magnetic mounting base for flexible installation
• Reverse polarity SMA connector interface

Antennas RF Applications

• 802.11b/g/n Wi-Fi systems
• Bluetooth communication devices
• ISM band wireless links
• WLAN infrastructure

Antennas RF Procurement Notes

Verify the specific connector type and polarization requirements against the target device specifications before purchase. Confirm that the reverse polarity SMA interface matches the receiving equipment port. Ensure the operating frequency range aligns with the intended 2.4 GHz application standards.

Antennas RF Selection Notes

Select this model when high gain is required for 2.4 GHz ISM band operations. The magnetic base facilitates temporary or semi-permanent mounting on metal surfaces. Consider the physical dimensions and cable length if integrated into compact handheld or vehicle-mounted setups.

Antennas RF Part Context

This component belongs to L-com's portfolio of RF antennas for networking solutions. It serves as an accessory for enhancing wireless connectivity in environments requiring reliable signal propagation over standard ranges without complex installation procedures.

Antennas RF Replacement Considerations

Direct substitutes include models with similar 2.4 GHz gain and connector types, such as the HG2409RD-RSP variant, provided the mounting configuration differences are accounted for during integration.
