HG2409MGU-NF

Antennas RF Overview

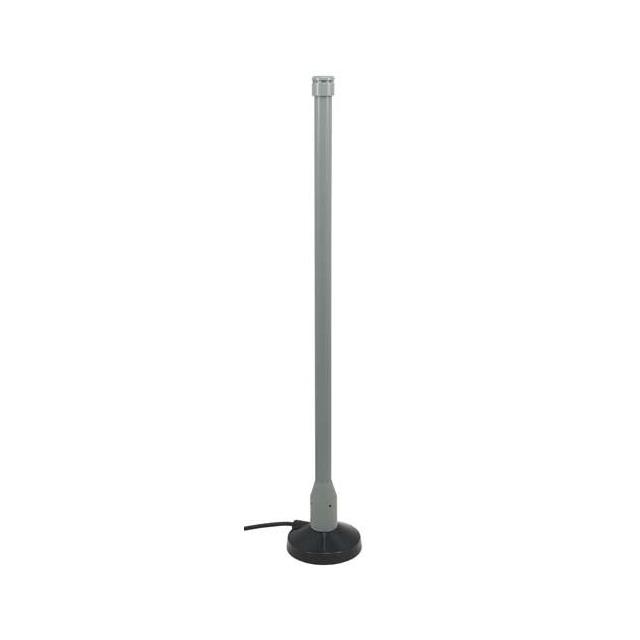

The L-com HG2409MGU-NF is a high-performance omnidirectional whip antenna designed for the 2.4 GHz ISM band and 2.36 GHz CDMA band. It features a gain of 8.5 dBi and operates within a frequency range of 2360-2500 MHz. The unit includes a magnetic mount base and a 10-foot (3.0m) cable terminated with an N-type female connector.

Antennas RF Feature Summary

• High-gain omnidirectional radiation pattern optimized for 2.4 GHz wireless applications
• Integrated magnetic mounting base for flexible installation on metal surfaces
• Durable whip design suitable for portable and fixed networking solutions

Antennas RF Applications

• Wi-Fi network infrastructure expansion
• WLAN coverage enhancement in indoor or outdoor environments
• Bluetooth connectivity extension
• ISM band data transmission systems

Antennas RF Procurement Notes

Verify that the specific part number suffix matches the required connector type, as variations exist between male and female N-type terminations. Confirm cable length requirements align with the standard 10-foot specification provided in official documentation to ensure compatibility with existing RF equipment interfaces.

Antennas RF Selection Notes

Select this model when an omnidirectional solution with moderate gain is required for the 2.4 GHz spectrum. The magnetic mount facilitates temporary or semi-permanent deployment without drilling. Ensure the N-type female connector interface matches the receiving device port configuration before integration into the system architecture.

Antennas RF Part Context

This component belongs to the HyperGain series of antennas from L-com, which focuses on high-performance RF solutions for wireless communication. The HG2409MGU-NF variant specifically addresses the need for reliable signal propagation in crowded 2.4 GHz bands used by multiple wireless standards.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Verify compatibility with existing mounts and connectors when considering alternative models from the same manufacturer family.
