HG2409MGU-NM

Antennas RF Overview

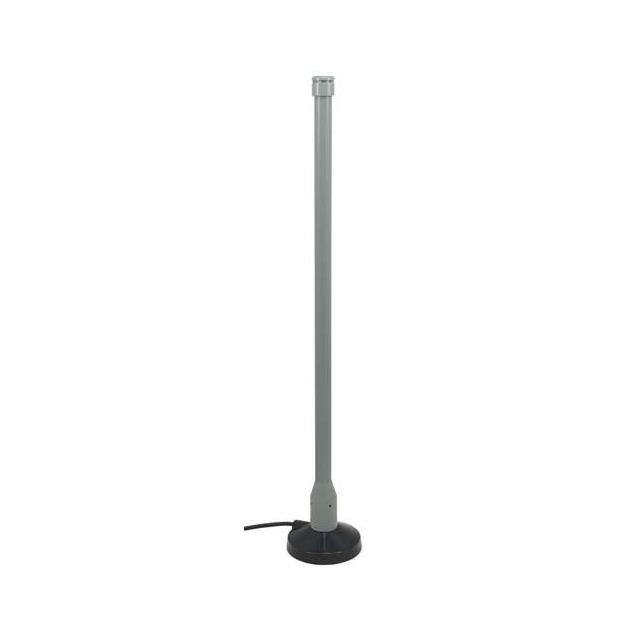

The L-com HG2409MGU-NM is a high-performance omnidirectional whip antenna designed for the 2.4 GHz ISM band and 2.36 GHz CDMA band. It features a gain of 8.5 dBi and includes a 10-foot (3.0m) cable with a straight N-type male connector. The unit utilizes a magnetic base for mounting flexibility.

Antennas RF Feature Summary

• High-gain omnidirectional radiation pattern optimized for 2.4 GHz operations
• Integrated magnetic base for flexible installation positioning
• Pre-terminated with 10-foot cable and N-type male interface

Antennas RF Applications

• Wi-Fi network infrastructure deployment
• WLAN signal extension
• Bluetooth connectivity enhancement
• ISM band wireless applications

Antennas RF Procurement Notes

Verify that the specific suffix 'NM' corresponds to the required N-type male connector configuration. Confirm the cable length requirement matches the standard 10-foot specification provided in official documentation. Ensure compatibility with existing N-type female ports on target networking equipment before finalizing procurement.

Antennas RF Selection Notes

Select this model when an omnidirectional solution with 8.5 dBi gain is required for 2.4 GHz environments. The magnetic mount facilitates temporary or semi-permanent placement without drilling. Consider the fixed 10-foot cable length during site planning to ensure adequate reach between the antenna and the radio unit.

Antennas RF Part Context

This component belongs to L-com's HyperGain series, which focuses on high-performance passive antennas. The HG2409MGU-NM variant specifically addresses 2.4 GHz wireless standards, providing enhanced range compared to standard low-gain units while maintaining a compact form factor suitable for various indoor and outdoor mounting scenarios.

Antennas RF Replacement Considerations

The HG2409MGU-RSP is a related variant within the same product family. Verify connector type and cable specifications when substituting, as suffixes indicate different physical configurations. No other direct substitutes are confirmed in public documentation.
