HG2409MGU-RSP

Antennas RF Overview

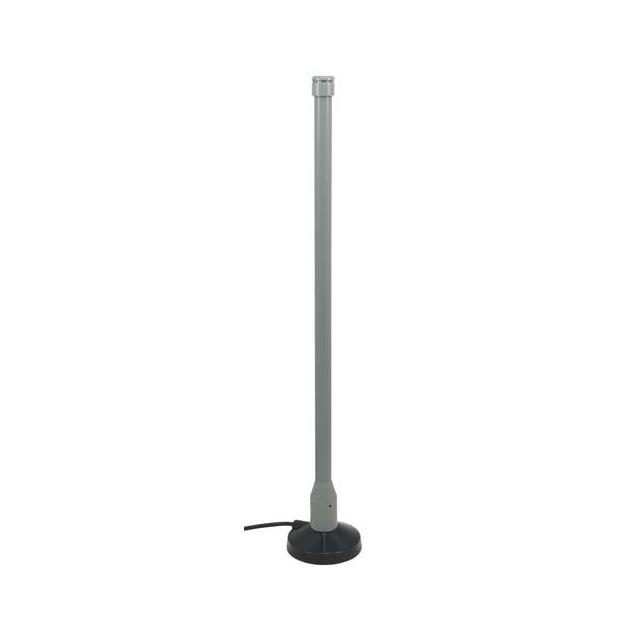

The L-com HG2409MGU-RSP is a high-performance omnidirectional mobile antenna designed for the 2.4 GHz ISM band and 2.36 GHz CDMA band. It features a gain of 8.5 dBi and utilizes a magnetic mount base for flexible installation. The unit includes a 10-foot (3.0m) low-loss coaxial cable terminated with an RP-SMA male connector, ensuring compatibility with standard wireless equipment.

Antennas RF Feature Summary

• High-gain omnidirectional radiation pattern optimized for 2.4 GHz Wi-Fi and Bluetooth applications
• Integrated magnetic mounting base allows for rapid deployment on ferrous surfaces
• Includes 10-foot cable with RP-SMA male connector for direct device attachment

Antennas RF Applications

• Mobile Wi-Fi signal enhancement in vehicles or temporary setups
• Bluetooth range extension for industrial or commercial devices
• ISM band wireless network connectivity improvement
• CDMA band communication system augmentation

Antennas RF Procurement Notes

Verify that the RP-SMA male connector matches the receiving port interface on the target device. Confirm the magnetic mount surface is clean and ferrous to ensure secure attachment during operation. Check cable length requirements against the installation environment to avoid strain or excess slack.

Antennas RF Selection Notes

Select this model when an 8.5 dBi gain is required for 2.4 GHz applications. Choose the RP-SMA variant specifically if the connected equipment uses reverse-polarity SMA ports rather than standard SMA connectors. Consider the magnetic mount requirement versus fixed bracket installations based on mobility needs.

Antennas RF Part Context

This component belongs to L-com's HyperGain series of RF antennas. It is part of a broader lineup offering various gain levels and connector types for different frequency bands. The HG2409MGU-RSP specifically addresses the need for higher gain in mobile 2.4 GHz environments compared to lower-gain alternatives.

Antennas RF Replacement Considerations

For identical specifications, consider the HG2409MGU-NM which uses an N-Type Male connector instead of RP-SMA. Verify connector compatibility before substitution as the electrical performance remains similar but physical interfaces differ.
