HG2409MGU-RTP

$112.66

Description：ANT MAGMNT 2.4GHZ 8.5DBI
Series：HG
Mfr：L-com
Package：Bag

SKU:4360efd1e8e3 Category: RF Antennas Brand: L-com

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

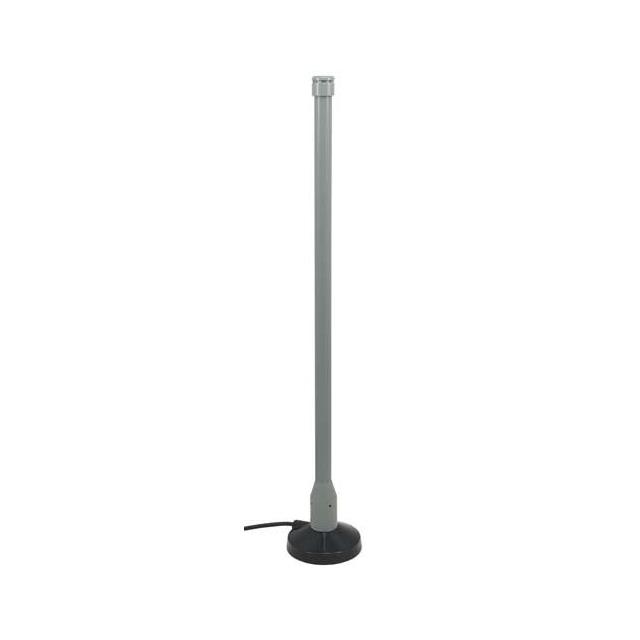

HG2409MGU-RTP is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANT MAGMNT 2.4GHZ 8.5DBI. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for HG2409MGU-RTP

Description：ANT MAGMNT 2.4GHZ 8.5DBI
Series：HG
Mfr：L-com
Package：Bag
RF Family/Standard：Bluetooth, Cellular, General ISM, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.43GHz
Frequency Range：2.36GHz ~ 2.5GHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：2
Return Loss：-
Gain：8.5dBi
Features：Cable - 3.05m
Termination：N Type Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Magnetic
Height (Max)：21.000" (533.40mm)
Applications：802.11b/g, Bluetooth, CDMA, ISM, Wi-Fi, WLAN
Power - Max：100 W

Antennas RF datasheet and documents for HG2409MGU-RTP

HG2409MGU-RTP

Antennas RF Overview

The HG2409MGU-RTP is a HyperLink omnidirectional wireless LAN antenna designed for the 2.4 GHz ISM band and 2.36 GHz CDMA band. It features an 8.5 dBi gain rating and includes a magnetic base for mounting flexibility. The component utilizes a 10-foot (3.0 meter) cable length terminated with a reverse polarity TNC plug connector.

Antennas RF Feature Summary

Omnidirectional radiation pattern optimized for 2.4 GHz wireless LAN applications
Integrated magnetic base for secure and flexible installation positioning
Reverse polarity TNC connector interface for compatible system integration

Antennas RF Applications

2.4 GHz ISM band wireless network infrastructure
2.36 GHz CDMA band communication systems
Indoor or outdoor WLAN signal extension setups

Antennas RF Procurement Notes

Verify the specific connector type suffix to ensure compatibility with existing equipment interfaces. Confirm that the reverse polarity configuration matches the receiving port requirements. Check the cable length specifications against physical deployment constraints. Ensure the magnetic base mounting surface is suitable for the intended installation environment.

Antennas RF Selection Notes

Select this model when an omnidirectional coverage pattern is required for 2.4 GHz operations. The 8.5 dBi gain provides enhanced range compared to standard low-gain alternatives. The magnetic base offers a non-permanent mounting solution suitable for temporary or adjustable setups. Consider the reverse polarity connector requirement during system design to avoid adapter usage.

Antennas RF Part Context

This antenna belongs to L-com's HyperLink series, which focuses on high-performance RF components for wireless networking. The HG2409MGU series represents the base antenna element, while the -RTP suffix specifically denotes the inclusion of a reverse polarity TNC plug and associated cabling assembly.
