HG2409P-NF

$65.68

Description：ANTENNA PATCH 2.4GHZ NF CONN
Series：HG
Mfr：L-com
Package：Bag

SKU:e609eb25c921 Category: RF Antennas Brand: L-com

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HG2409P-NF is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANTENNA PATCH 2.4GHZ NF CONN. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for HG2409P-NF

Description：ANTENNA PATCH 2.4GHZ NF CONN
Series：HG
Mfr：L-com
Package：Bag
RF Family/Standard：Bluetooth, General ISM, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.45GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Panel
Number of Bands：1
VSWR：1.5
Return Loss：-
Gain：8dBi
Features：-
Termination：-
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Bracket Mount
Height (Max)：0.910" (23.11mm)
Applications：802.11b/g, Bluetooth, ISM, Wi-Fi, WLAN
Power - Max：-

Antennas RF datasheet and documents for HG2409P-NF

HG2409P-NF

Antennas RF Overview

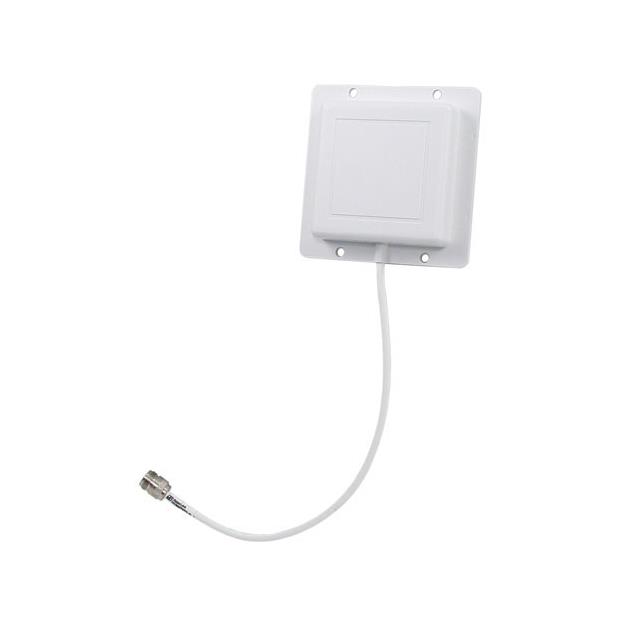

The L-com HG2409P-NF is a high-performance directional flat patch antenna designed for the 2.4 GHz ISM band, supporting 802.11b/g, Bluetooth, Wi-Fi, and WLAN applications. It features an 8 dBi gain rating and utilizes an N-type female connector. The unit measures 4.5 inches square and includes a low-loss coaxial cable. Constructed with a solid brass element and a UV-stable, UL flame-rated radome, it offers durability for indoor and outdoor deployment.

Antennas RF Feature Summary

Directional flat patch design optimized for 2.4 GHz ISM band operations
UV-stable and UL flame-rated radome for environmental durability
Solid brass element construction with DC short lightning protection
Compact form factor suitable for panel bracket mounting

Antennas RF Applications

Indoor wireless LAN deployments
Outdoor Wi-Fi network extensions
Bluetooth point-to-point links
ISM band data transmission systems

Antennas RF Procurement Notes

Verify the specific connector gender and interface type against system requirements to ensure compatibility. Confirm that the operating frequency range aligns with the intended 2.4 GHz application standards. Check physical dimensions for adequate mounting space in the target installation environment.

Antennas RF Selection Notes

Select this model when directional gain is required over omnidirectional coverage for 2.4 GHz signals. Consider the compact size and robust radome for installations exposed to weather or requiring discreet mounting. Ensure the N-type connector matches existing cabling infrastructure.

Antennas RF Part Context

This component belongs to the HG2409P series of passive antennas manufactured by L-Com. The series focuses on high-performance directional solutions for wireless communication bands. The HG2409P-NF variant specifically denotes the configuration with an N-type connector interface.
