HG2409PCL-NF

Antennas RF Overview

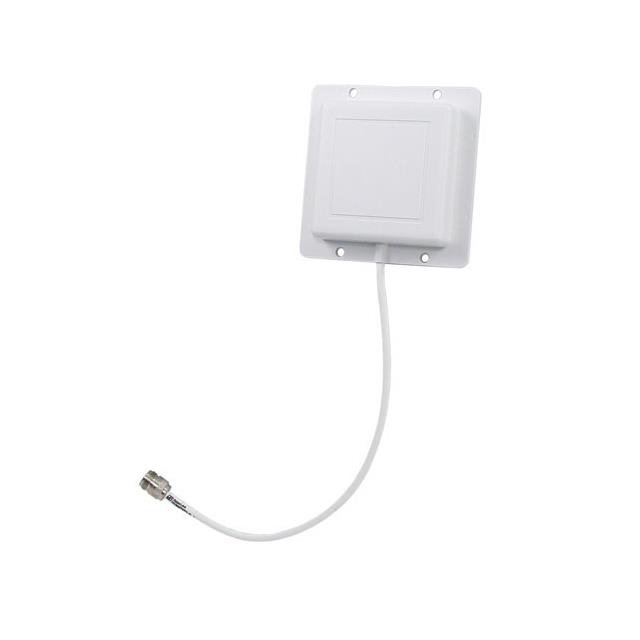

The L-com HG2409PCL-NF is a HyperGain series flat patch antenna designed for 2.4 GHz ISM band operations, including Wi-Fi and Bluetooth. It features Left-Hand Circular Polarization (LHCP) and provides an 8 dBi gain with broad coverage characteristics. The unit utilizes an N-Female connector interface and includes a 12-inch cable length for flexible installation in WLAN environments.

Antennas RF Feature Summary

• Compact flat patch design suitable for space-constrained installations
• Left-Hand Circular Polarization for improved signal integrity
• Broad coverage pattern optimized for 2.4 GHz applications

Antennas RF Applications

• Wi-Fi network infrastructure deployment
• Bluetooth device connectivity systems
• WLAN indoor coverage enhancement

Antennas RF Procurement Notes

Verify the specific connector type and polarization requirements against system specifications before ordering. Confirm that the 12-inch cable length meets spatial constraints. Ensure compatibility with N-Female ports on receiving equipment to prevent interface mismatch issues during integration.

Antennas RF Selection Notes

Select this model when Left-Hand Circular Polarization is required for 2.4 GHz links. Consider the fixed 12-inch cable length for routing flexibility. Evaluate the 8 dBi gain against range requirements compared to lower or higher gain alternatives within the HyperGain series.

Antennas RF Part Context

This component belongs to the L-com HyperGain HG2409PCL series of RF antennas. The series specializes in compact, flat-form-factor solutions for wireless local area networks. The HG2409PCL-NF variant specifically denotes the configuration with an N-Female connector and standard cable assembly.

Antennas RF Replacement Considerations

The HG2409PCL-RSP is a related variant within the same product family. Verify if the specific connector or cable differences between these models impact the current installation requirements.
