HG2409PCL-NM

Antennas RF Overview

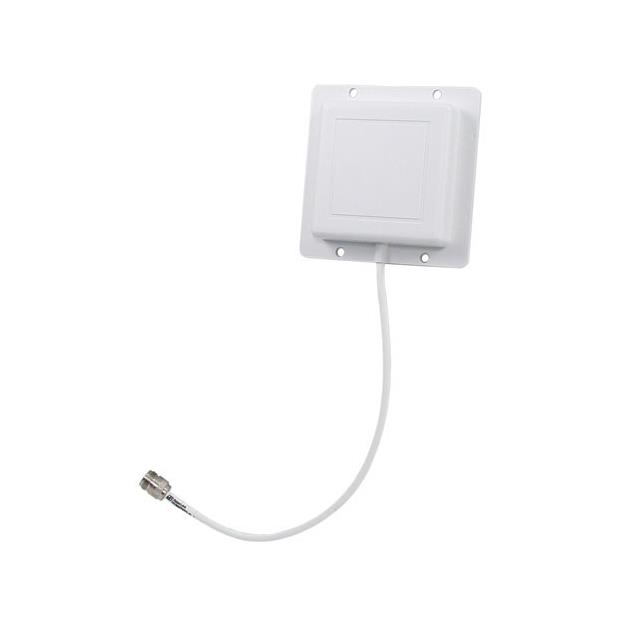

The HG2409PCL-NM is a HyperLink wireless LAN circular polarized flat patch antenna operating in the 2.4 GHz frequency band. It provides an 8 dBi gain and utilizes Left-Hand Circular Polarization (LHCP) to enhance signal stability. The unit features a 4-foot cable terminated with an N-Male connector, facilitating integration into various RF systems.

Antennas RF Feature Summary

• Compact flat patch design suitable for indoor and outdoor deployment
• Left-hand circular polarization reduces multipath interference effects
• Broad coverage pattern optimized for fixed access point applications

Antennas RF Applications

• Indoor and outdoor 2.4 GHz ISM band installations
• Fixed Access Point (AP) deployments requiring stable connectivity
• Wireless LAN (WLAN) infrastructure supporting 802.11b/g standards
• Bluetooth and general Wi-Fi network expansion

Antennas RF Procurement Notes

Verify that the specific model suffix 'NM' corresponds to the N-Male connector type required for your system interface. Confirm the 4-foot cable length meets physical routing constraints. Ensure compatibility with Left-Hand Circular Polarization protocols in the receiving equipment to maintain optimal signal integrity and gain performance.

Antennas RF Selection Notes

Select this model when Left-Hand Circular Polarization is mandated to mitigate multipath fading in dense environments. The 8 dBi gain offers directional focus compared to omnidirectional alternatives. The N-Male connector requires matching female ports on the radio or feed line. Consider the 4-foot cable length for installation flexibility versus direct-mount options.

Antennas RF Part Context

This component belongs to the L-Com HyperGain HG2409PCL series of high-performance directional antennas. The series includes variants such as the HG2409PCL-NF, which differs primarily in connector type. These antennas are engineered for robust performance in both commercial and industrial wireless networking scenarios within the 2.4 GHz spectrum.

Antennas RF Replacement Considerations

The HG2409PCL-NF serves as a functional substitute within the same series, offering identical electrical characteristics and polarization but utilizing an N-Female connector instead of N-Male. Verify connector gender compatibility before substitution.
