HG2409PCL-RSP

Antennas RF Overview

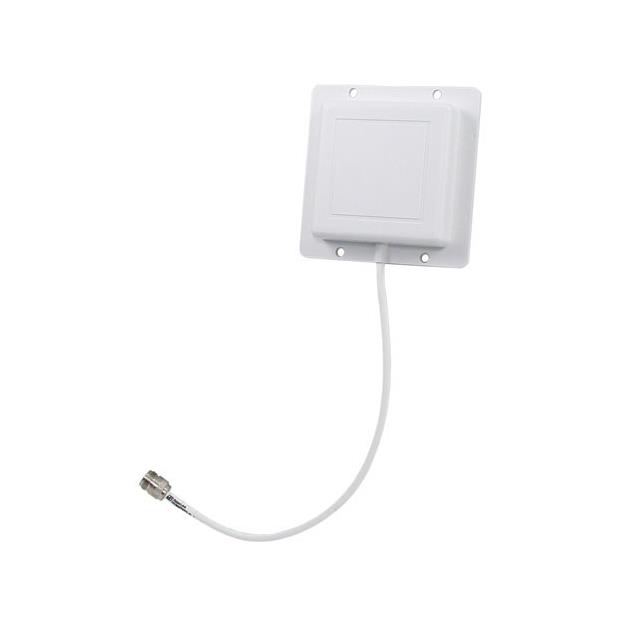

The HG2409PCL-RSP is a flat patch antenna manufactured by L-com, designed for wireless LAN applications. It operates at a frequency of 2.4 GHz and provides a gain of 8 dBi. The component features left-hand circular polarization (LHCP) and utilizes an RP-SMA connector interface. It is constructed as a compact unit suitable for through-hole mounting on printed circuit boards.

Antennas RF Feature Summary

• Provides 8 dBi gain with broad coverage in the 2.4 GHz band
• Features left-hand circular polarization for specific signal alignment
• Compact flat patch design optimized for space-constrained installations

Antennas RF Applications

• Wireless LAN (WLAN) infrastructure
• Wi-Fi network access points
• Bluetooth connectivity modules
• ISM band communication devices

Antennas RF Procurement Notes

Verify that the required polarization matches the system design, as this model specifies left-hand circular polarization. Confirm the connector type is RP-SMA to ensure compatibility with existing RF interfaces. Check mechanical dimensions against PCB layout constraints due to its flat patch form factor. Ensure the operating frequency aligns with the 2.4 GHz requirement for the intended application.

Antennas RF Selection Notes

Select this antenna when left-hand circular polarization is required for the 2.4 GHz band. It is appropriate for applications needing 8 dBi gain in a low-profile format. Consider the RP-SMA interface for connection requirements. Evaluate spatial constraints as it is a flat patch design. Compare against right-hand polarized variants if LHCP does not match the system specifications.

Antennas RF Part Context

This component belongs to the HyperGain HG2409PCL series from L-com. The series includes both left-hand and right-hand polarized variants. The HG2409PCR series represents the right-hand counterpart. These antennas are engineered for high-performance wireless communications in the 2.4 GHz ISM band.
