HG2409PCL-RTP

$60.52

Description：ANTFLAT PATCH 2.4GHZ 8DBI
Series：HG
Mfr：L-com
Package：Bag

SKU:a3c509700cf3 Category: RF Antennas Brand: L-com

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HG2409PCL-RTP is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANTFLAT PATCH 2.4GHZ 8DBI. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for HG2409PCL-RTP

Description：ANTFLAT PATCH 2.4GHZ 8DBI
Series：HG
Mfr：L-com
Package：Bag
RF Family/Standard：Bluetooth, General ISM, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.45GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Flat Patch
Number of Bands：1
VSWR：1.5
Return Loss：-
Gain：8dBic
Features：-
Termination：Connector
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Through Hole
Height (Max)：0.900" (22.86mm)
Applications：802.11b/g, Bluetooth, ISM, Wi-Fi, WLAN
Power - Max：-

Antennas RF datasheet and documents for HG2409PCL-RTP

HG2409PCL-RTP

Antennas RF Overview

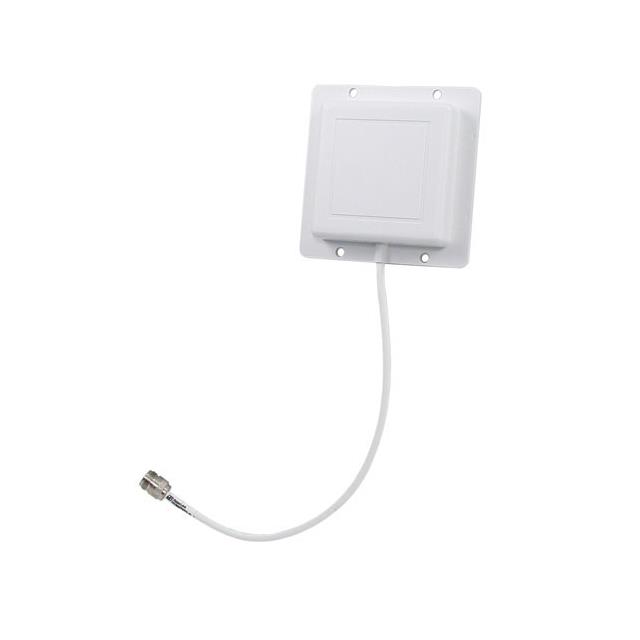

The HG2409PCL-RTP is a compact flat WiFi patch antenna from the HyperGain series, operating at 2.4 GHz with 8 dBi gain. It features left-hand circular polarization and broad coverage. The unit includes an integrated cable terminating in an RP-SMA male connector for direct attachment to compatible devices.

Antennas RF Feature Summary

Compact flat design suitable for space-constrained installations
Left-hand circular polarization for improved signal reliability
Integrated cable assembly with RP-SMA male connector

Antennas RF Applications

Wireless LAN (WLAN) access points
Bluetooth network infrastructure
ISM band communication systems
Wi-Fi router connections

Antennas RF Procurement Notes

Verify that the specific part number matches the required connector type and polarization. Confirm that the receiving equipment supports left-hand circular polarization to ensure optimal performance. Check physical dimensions against installation constraints before ordering.

Antennas RF Selection Notes

Select this model when a low-profile antenna with integrated cabling is required. Ensure compatibility with RP-SMA ports on the target device. Consider left-hand circular polarization requirements for the specific wireless environment.

Antennas RF Part Context

This component belongs to the L-com HyperGain HG2409PCL series of 2.4 GHz antennas. The suffix 'RTP' indicates the specific configuration including the integrated cable and RP-SMA male connector, distinguishing it from other variants in the series.
