HG2409PCL-SM

Antennas RF Overview

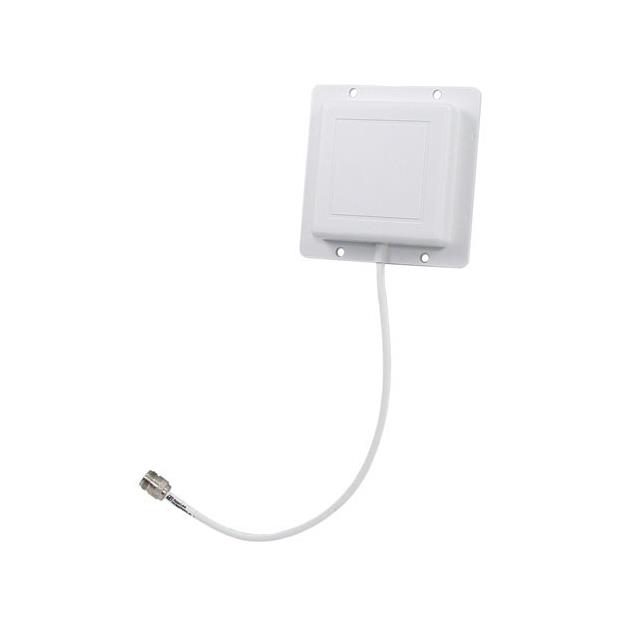

The L-com HG2409PCL-SM is a compact flat patch antenna designed for the 2.4 GHz ISM band, supporting 802.11b/g Wi-Fi, Bluetooth, and WLAN applications. It features Left-Hand Circular Polarization (LHCP) to mitigate multipath interference in wireless environments. The unit provides an 8 dBi gain with broad coverage characteristics. It utilizes an SMA male connector for interface connectivity and is constructed for through-hole mounting, ensuring secure installation in various RF setups.

Antennas RF Feature Summary

• Compact flat patch design optimized for space-constrained installations
• Left-Hand Circular Polarization reduces signal degradation from multipath effects
• Broad coverage pattern suitable for diverse wireless communication needs

Antennas RF Applications

• 802.11b/g Wi-Fi network infrastructure
• Bluetooth device connectivity systems
• WLAN access point deployments
• ISM band industrial communications

Antennas RF Procurement Notes

Verify that the SMA male connector matches the mating port on the receiving equipment. Confirm the requirement for Left-Hand Circular Polarization aligns with the system's polarization standards. Ensure the through-hole mounting method is compatible with the intended chassis or panel structure before finalizing the order.

Antennas RF Selection Notes

Select this model when LHCP is required to improve link stability in reflective environments. The 8 dBi gain offers a balance between range and size. Consider the SMA interface compatibility and physical dimensions for integration into existing enclosures compared to other HyperGain series variants.

Antennas RF Part Context

This component belongs to the L-com HyperGain HG2409PCL series of antennas. The series focuses on providing high-performance circular polarized solutions for 2.4 GHz applications. Variants within the series typically differ by connector type and cable length while maintaining consistent electrical performance and polarization characteristics.

Antennas RF Replacement Considerations

Direct substitutes include other HG2409PCL series models such as HG2409PCL-NM or HG2409PCL-NF, provided the connector interface difference is addressed via adapters or cabling changes.
