HG2409PCR-NF

$53.27

Description：ANTFLAT PATCH 2.4GHZ 8DBI
Series：HG
Mfr：L-com
Package：Bag

SKU:08875d596e1f Category: RF Antennas Brand: L-com

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HG2409PCR-NF is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANTFLAT PATCH 2.4GHZ 8DBI. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for HG2409PCR-NF

Description：ANTFLAT PATCH 2.4GHZ 8DBI
Series：HG
Mfr：L-com
Package：Bag
RF Family/Standard：Bluetooth, General ISM, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.45GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Flat Patch
Number of Bands：1
VSWR：1.5
Return Loss：-
Gain：8dBic
Features：-
Termination：Connector
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Through Hole
Height (Max)：0.900" (22.86mm)
Applications：802.11b/g, Bluetooth, ISM, Wi-Fi, WLAN
Power - Max：-

Antennas RF datasheet and documents for HG2409PCR-NF

HG2409PCR-NF

Antennas RF Overview

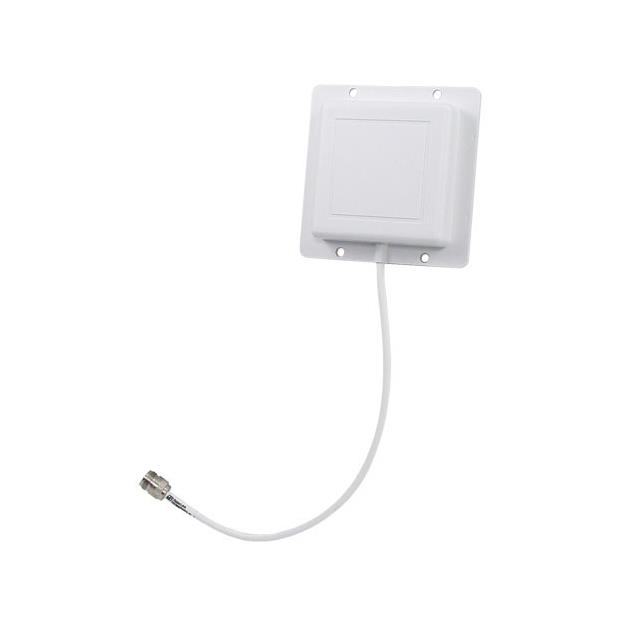

The L-com HG2409PCR-NF is a 2.4 GHz Right Hand Circular Polarized (RHCP) patch antenna with an N-Female connector. It provides 8 dBi gain and supports 802.11b/g, Bluetooth, ISM, Wi-Fi, and WLAN applications. The unit price is $50.34.

Antennas RF Feature Summary

Compact flat WiFi patch design
Right Hand Circular Polarization
Broad coverage capability

Antennas RF Applications

Fixed Access Point installations
Wi-Fi networks
Bluetooth connections
ISM band operations

Antennas RF Procurement Notes

Verify the specific connector type matches system requirements. Confirm frequency range compatibility with target devices. Check environmental ratings for installation location. Ensure mounting hardware is included or sourced separately. Validate regulatory compliance for intended region.

Antennas RF Selection Notes

Choose this model for fixed point-to-point or point-to-multipoint links requiring circular polarization. Consider alternative connectors if N-Female is incompatible. Evaluate gain requirements against distance needs. Assess physical space constraints for flat patch form factor.

Antennas RF Part Context

Part of the HyperGain HG2409PCR series. Offers compact design with broad coverage. Supports multiple wireless standards including Wi-Fi and Bluetooth. Designed for reliable performance in various RF environments.

Antennas RF Replacement Considerations

HG2409PCR-SM offers SMA Male connector variant. HG2409PCL provides similar specifications with different connector options. Verify connector interface compatibility before substitution.
