HG2409PCR-NM is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANTFLAT PATCH 2.4GHZ 8DBI. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for HG2409PCR-NM
- Description：ANTFLAT PATCH 2.4GHZ 8DBI
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：Bluetooth, General ISM, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.45GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Flat Patch
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：8dBic
- Features：-
- Termination：Connector
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Through Hole
- Height (Max)：0.900" (22.86mm)
- Applications：802.11b/g, Bluetooth, ISM, Wi-Fi, WLAN
- Power - Max：-
Antennas RF datasheet and documents for HG2409PCR-NM
Antennas RF Overview

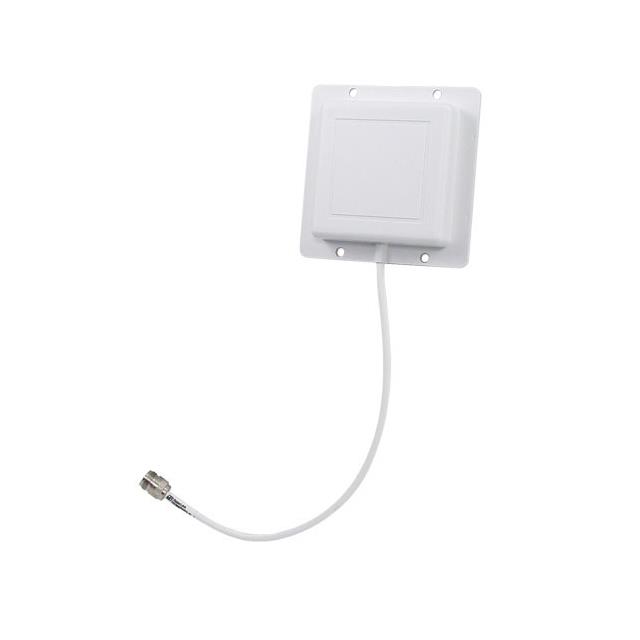

The L-com HG2409PCR-NM is a compact Right Hand Circular Polarized flat WiFi patch antenna operating at 2.4 GHz with 8 dBi gain. It features a broad coverage pattern and includes a durable UV-stable, UL flame-rated radome. The internal element is constructed from low-loss solid brass and incorporates DC short lightning protection. The model suffix NM indicates an N Male connector configuration.
Antennas RF Feature Summary
- Compact flat design for discreet installation
- Right-hand circular polarization for improved signal integrity
- Durable UV-stable and UL flame-rated radome construction
- Low-loss solid brass element with integrated DC short lightning protection
Antennas RF Applications
- Fixed Access Point installations
- Wi-Fi WLAN networks
- Bluetooth connectivity systems
- ISM band applications
Antennas RF Procurement Notes
Verify the connector type matches the system requirements, as the NM suffix denotes an N Male interface. Confirm that the Right Hand Circular Polarization aligns with the receiving equipment's specifications to ensure optimal signal transfer. Check for required mounting brackets or pigtails if not included in the base package.
Antennas RF Selection Notes
Select this model when Right Hand Circular Polarization is required for fixed access points to mitigate multipath interference. The compact form factor suits environments where space is limited. Ensure the 2.4 GHz frequency range covers the intended Wi-Fi or ISM application needs.
Antennas RF Part Context
This component belongs to the HyperGain HG2409PCR series of antennas. The series includes variants with different polarizations and connectors, such as the LHCP version (HG2409PCL) and models with NF connectors. All share the same core 8 dBi gain and flat patch design architecture.
Antennas RF Replacement Considerations
The HG2409PCL serves as a substitute if Left Hand Circular Polarization is acceptable. Models with NF connectors may replace this unit if the interface difference is accommodated by adapters.
