HG2409PCR-SM

Antennas RF Overview

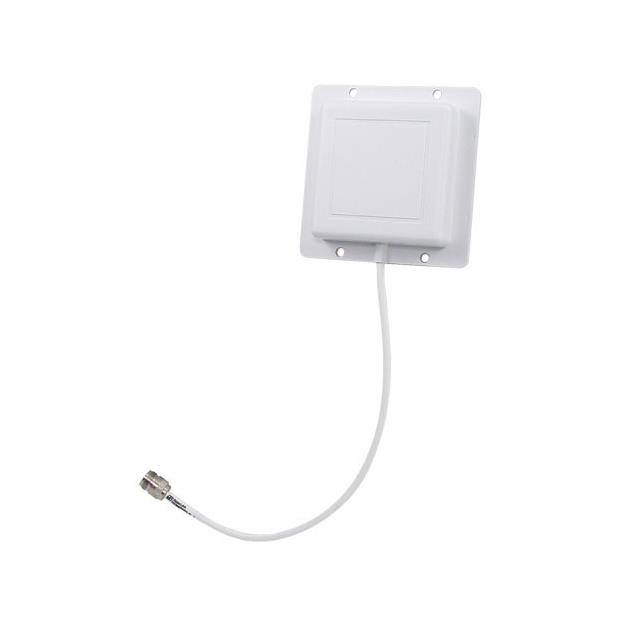

The HG2409PCR-SM is a compact Right Hand Circular Polarized flat WiFi patch antenna from the HyperGain series. It operates at 2.4 GHz with an 8 dBi gain and features broad coverage capabilities. The unit includes a 4-foot cable terminated with an SMA male connector, designed for through-hole mounting on PCBs. This configuration supports reliable signal transmission in wireless networking environments requiring specific polarization characteristics.

Antennas RF Feature Summary

• Right Hand Circular Polarization for stable signal reception
• Compact flat patch design suitable for space-constrained installations
• Integrated 4-foot cable with SMA male connector for direct interface

Antennas RF Applications

• Wi-Fi access point integration
• Wireless LAN (WLAN) infrastructure deployment
• Bluetooth device connectivity modules
• ISM band communication systems

Antennas RF Procurement Notes

Verify that the SMA male connector type matches the receiving port specifications of the target electronic assembly. Confirm that the 4-foot cable length aligns with the physical layout requirements of the installation site to ensure adequate reach without excessive slack or tension.

Antennas RF Selection Notes

Select this model when Right Hand Circular Polarization is required to mitigate multipath interference in 2.4 GHz applications. The integrated cable simplifies assembly compared to panel-mount variants. Ensure the host device supports the impedance and frequency range compatible with this specific patch antenna design.

Antennas RF Part Context

This component belongs to the L-com HyperGain HG2409PCR series, which specializes in compact RF antennas for wireless standards. The series provides consistent performance across various 2.4 GHz applications, including Wi-Fi and Bluetooth, offering a balance between gain and physical footprint for embedded networking solutions.

Antennas RF Replacement Considerations

Consider the HG2409PCR-NM if a female N-type connector is required instead of the SMA male interface. Verify that any substitute maintains the same 8 dBi gain and Right Hand Circular Polarization to preserve system performance characteristics.
