HG2409RD-RTP

Overview

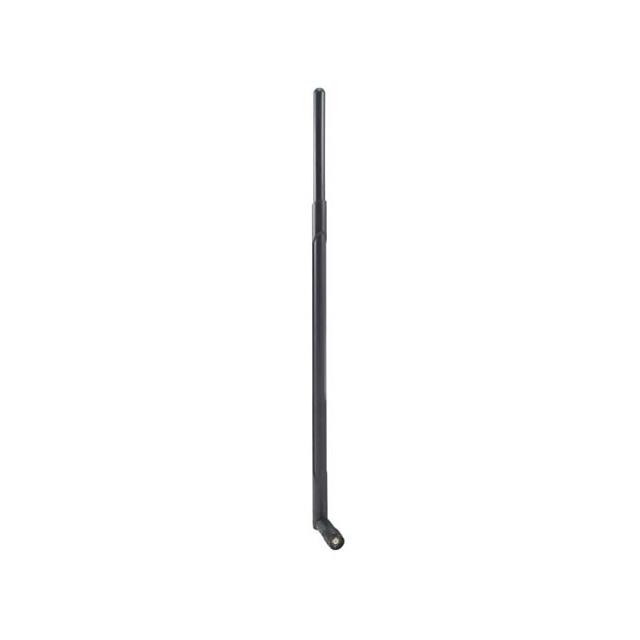

The HG2409RD-RTP is a HyperLink Wireless omnidirectional rubber duck antenna designed for the 2.4 GHz ISM band. It provides a gain of 9 dBi with a maximum VSWR of 1.5. The component features a reverse polarity TNC plug connector and utilizes a coaxial sleeve design. It complies with RoHS3 standards and supports IEEE 802.11b, 802.11g, Bluetooth, and WiFi protocols.

Feature Summary

• Omnidirectional radiation pattern for broad coverage
• High performance 9 dBi gain in compact form factor
• Reverse polarity TNC connector interface
• Coaxial sleeve construction

Applications

• IEEE 802.11b/g Wireless LAN access points
• Bluetooth device connectivity
• WiFi network infrastructure
• 2.4 GHz ISM band equipment

Procurement Notes

Verify the specific connector type matches the target device requirements. Confirm that the reverse polarity configuration is compatible with the existing system interface. Ensure environmental conditions align with the operational specifications. Check for RoHS3 compliance if required by project regulations. Validate frequency range suitability for the intended application.

Selection Notes

Select this model when high gain is required within a limited physical space. The rubber duck design allows for flexible placement compared to rigid antennas. Consider the reverse polarity connector to prevent accidental mismatching. Evaluate the 2.4 GHz frequency range against interference sources. Assess the need for omnidirectional coverage in the deployment area.

Part Context

This antenna belongs to the L-com HyperLink Wireless series. It serves as an upgrade solution for standard detachable antennas on wireless access points. The product replaces lower gain units to enhance signal reach. It is categorized under RF antennas for wireless communication systems.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
