Product Detailed Parameters
- Description：ANTRUBBER DUCK 2.4GHZ 9DBI
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：Bluetooth, General ISM, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.45GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Whip, Tilt
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：9dBi
- Features：-
- Termination：SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount, Magnetic
- Height (Max)：15.120" (384.05mm)
- Applications：802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN
- Power - Max：50 W
Download product information
Overview

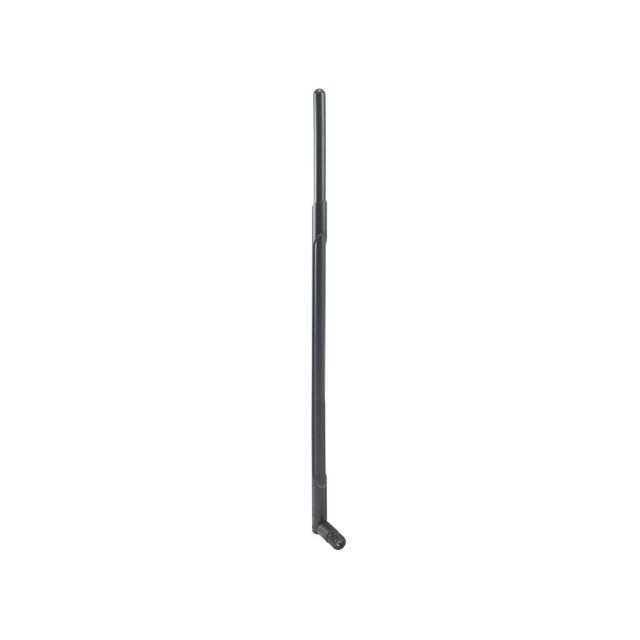

The L-com HG2409RD-SM is a high-performance RF antenna designed for the 2.4 to 2.5 GHz frequency range, supporting Wi-Fi, WLAN, Bluetooth, and ISM applications. It features a 9 dBi gain and a 50-ohm impedance with an SMA male connector. The unit utilizes a tilt mount configuration with magnetic base attachment, enabling flexible positioning for optimal signal coverage in wireless network environments.
Feature Summary
- Omni-directional radiation pattern provides broad coverage for wireless signals
- High gain design enhances signal strength and reception range
- Magnetic mounting base allows for flexible and adjustable positioning
Applications
- Wireless LAN (WLAN) systems
- Bluetooth connectivity setups
- ISM band industrial applications
- Public wireless hotspot deployments
Procurement Notes
Verify that the SMA male connector type matches the receiving equipment interface requirements. Confirm the magnetic mount stability meets the installation environment's vibration and wind load specifications. Ensure the operating temperature range aligns with the deployment site conditions. Cross-check regulatory compliance certifications for the target region before finalizing procurement orders.
Selection Notes
Select this model when a high-gain omnidirectional antenna is required for 2.4 GHz bands. The SMA male connector dictates compatibility with standard RF interfaces. The magnetic mount offers flexibility compared to fixed bracket installations. Consider environmental factors such as outdoor exposure or indoor ceiling mounting when evaluating the rubber duck form factor.
Part Context
This component belongs to the HyperGain series of wireless LAN antennas from L-com. These antennas are engineered for robust performance in demanding RF environments. The series includes variants with different connector types and mounting options to suit diverse integration needs across communication infrastructure projects.
Replacement Considerations
The HG2409RD-NM serves as a substitute variant featuring an N-Male connector instead of SMA. The HG2409RD-RSP offers RP-SMA connectivity. Verify connector gender and thread specifications to ensure mechanical and electrical compatibility during replacement scenarios.
