Product Detailed Parameters
- Description：ANTOMNI 2.4GHZ 9DBI
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：General ISM, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.45GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：9dBi
- Features：-
- Termination：N Type Female
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Bracket Mount
- Height (Max)：32.400" (822.96mm)
- Applications：802.11b/g, ISM, Wi-Fi, WLAN
- Power - Max：100 W
Download product information
Overview

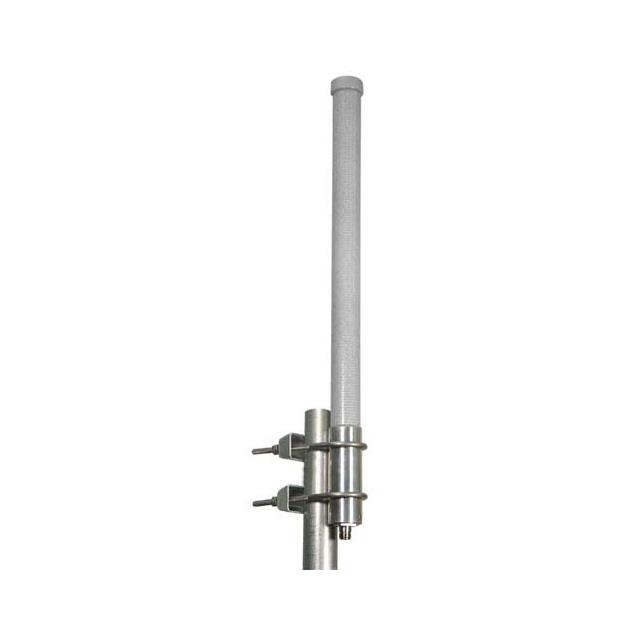

The L-com HG2409U-PRO is a professional-grade, omnidirectional whip antenna designed for the 2.4 GHz ISM band. It operates within a frequency range of 2.4 GHz to 2.5 GHz with a center frequency of 2.5 GHz. The component provides a gain of 9 dBi and supports IEEE 802.11b/g/n applications. It features an integral N-type female connector and utilizes bracket mounting for installation. The maximum power handling capacity is rated at 100 W, ensuring reliability in commercial wireless environments.
Feature Summary
- Professional grade construction suitable for commercial installations
- Omnidirectional radiation pattern for consistent coverage
- Integral N-type female connector for direct cable attachment
- Bracket mount design for secure structural installation
Applications
- Commercial Wi-Fi network infrastructure
- IEEE 802.11b/g/n wireless LAN deployments
- 2.4 GHz wireless video systems
- Bluetooth and public wireless hotspot access points
Procurement Notes
Verify that the specific procurement order matches the HG2409U-PRO model designation to ensure receipt of the 9 dBi omnidirectional variant rather than other HyperGain series antennas. Confirm compatibility with existing N-type female connectors on host equipment. Check current manufacturer documentation for any updates regarding RoHS compliance status or moisture sensitivity levels prior to finalizing purchase orders.
Selection Notes
Select this component when a fixed-gain omnidirectional solution is required for 2.4 GHz ISM band operations. The integral N-female connector eliminates the need for separate adapters, simplifying system integration. Ensure the application environment supports bracket mounting and that the 100 W power rating exceeds peak transmission requirements. This model is distinct from higher-gain variants like the HG2415U-PRO.
Part Context
This antenna belongs to the L-com HyperGain HG series, which focuses on professional-grade RF solutions for commercial and industrial wireless applications. The HG2409U-PRO specifically addresses the need for reliable 2.4 GHz connectivity with standardized N-type interfaces. It complements other models in the series by offering a balanced gain-to-size ratio suitable for various mounting scenarios.
Replacement Considerations
Direct substitutes within the same product line include the HG2415U-PRO for increased gain requirements. Verify that replacement parts maintain the N-type female interface and bracket mounting configuration to ensure mechanical and electrical compatibility with existing installations.
