HG2409UDT-PRO-5PK

Antennas RF Overview

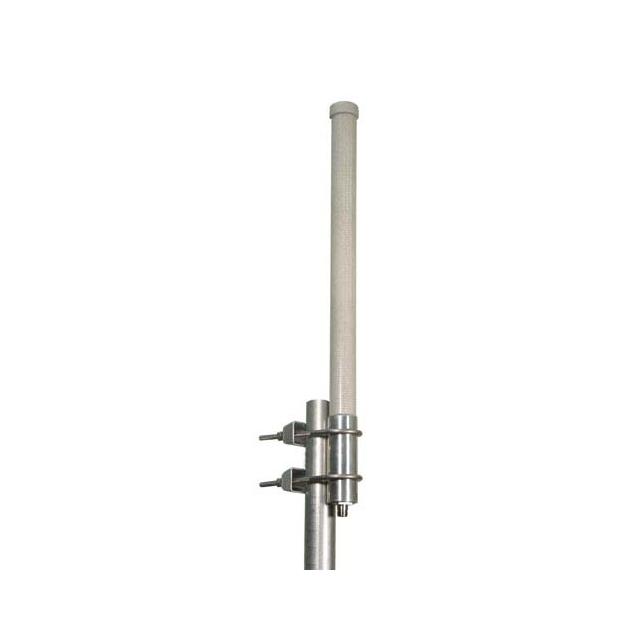

The HG2409UDT-PRO-5PK is a professional-grade omnidirectional antenna designed for commercial installations. It operates within the 2.4 GHz to 2.5 GHz frequency range, providing a gain of 9 dBi. The unit features an N-type female connector and incorporates a 7-degree down-tilt design to optimize signal coverage. It supports applications including WLAN, ISM, Bluetooth, and Wi-Fi networks.

Antennas RF Feature Summary

• Professional grade construction suitable for commercial deployments
• Omnidirectional radiation pattern with 7-degree down-tilt
• High gain performance at 9 dBi

Antennas RF Applications

• Commercial wireless network installations
• WLAN connectivity
• Bluetooth communication systems
• ISM band operations

Antennas RF Procurement Notes

Verify that the specific part number matches the required 9 dBi gain and 7-degree down-tilt specifications. Confirm compatibility with N-type female connectors on receiving equipment. Ensure the package quantity aligns with project requirements as this item is sold in packs.

Antennas RF Selection Notes

Select this model when a directional tilt is required to manage interference or focus coverage downward. The 9 dBi gain offers enhanced range compared to standard 8 dBi variants. Verify environmental ratings if outdoor exposure is anticipated.

Antennas RF Part Context

This component belongs to L-com's HyperGain series, which focuses on high-performance antennas for demanding environments. The HG2409U-PRO variant serves as the base model without the down-tilt feature. This specific SKU includes multiple units per package.

Antennas RF Replacement Considerations

The HG2409U-PRO is a direct substitute if the 7-degree down-tilt is not required. Both share similar form factors and connector types but differ in radiation pattern characteristics.
