Product Detailed Parameters
- Description：ANTOMNI 2.4GHZ 9DBI
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：General ISM, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.45GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：9dBi
- Features：-
- Termination：N Type Female
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Bracket Mount
- Height (Max)：32.000" (812.80mm)
- Applications：802.11b/g, ISM, Wi-Fi, WLAN
- Power - Max：150 W
Download product information
Overview

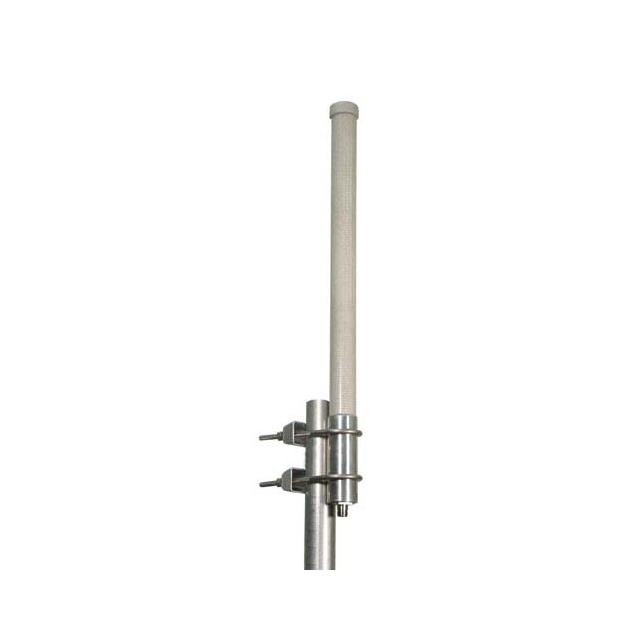

The L-com HG2409UDT-PRO is a professional-grade, omnidirectional RF antenna designed for commercial wireless installations. It operates within the 2.4 GHz to 2.5 GHz frequency band, supporting standards such as WLAN and ISM. The component features a fixed 7-degree down-tilt radiation pattern to optimize signal coverage for specific application geometries. It provides a gain of 9 dBi with a 50-ohm impedance and utilizes an N-type female connector for secure attachment. The antenna is constructed from durable fiberglass materials suitable for robust environmental conditions.
Feature Summary
- Omnidirectional radiation pattern with a fixed 7-degree mechanical down-tilt
- Professional-grade construction using durable fiberglass materials
- Optimized for commercial wireless LAN and ISM applications
Applications
- Commercial wireless network infrastructure
- Industrial WLAN deployments
- ISM band communication systems
Procurement Notes
Verify that the required connector interface matches the N-type female specification on the target equipment. Confirm that the 7-degree down-tilt angle aligns with the intended coverage area requirements. Ensure the operating frequency range of 2.4 to 2.5 GHz is compatible with the system design. Check environmental ratings if outdoor installation is planned.
Selection Notes
Select this model when a directional tilt is necessary to reduce interference or optimize coverage in commercial settings. The 9 dBi gain offers enhanced performance compared to standard low-gain alternatives. Consider the physical dimensions and mounting hardware compatibility before integration into existing structures.
Part Context
This component belongs to the HyperGain series of antennas manufactured by L-com. It is part of a broader portfolio of RF solutions designed for wireless connectivity. The product line emphasizes professional-grade durability and precise radiation patterns for reliable data transmission.
Replacement Considerations
Direct substitutes include other L-com models with similar specifications, such as the HG2408U-PRO for directional applications or the HG2409U-PRO if a non-tilted omnidirectional pattern is acceptable. Verify connector type and gain requirements when evaluating alternatives.
