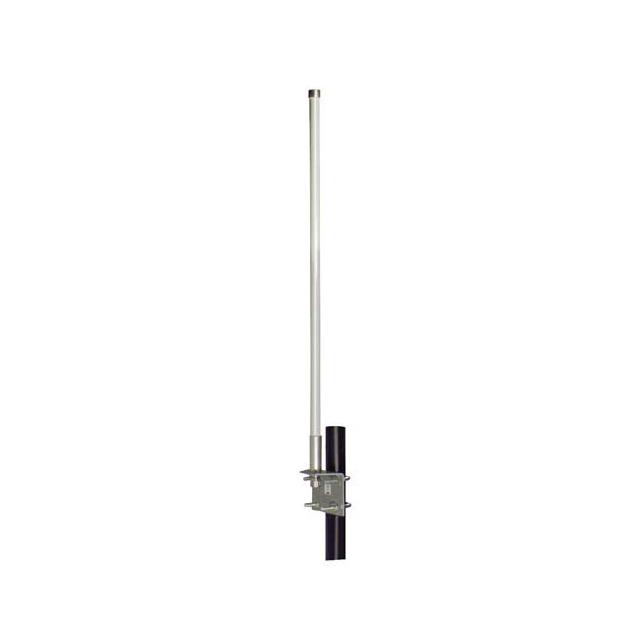

HG2409UP-NF is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANTOMNI 2.4GHZ 8.5DBI. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for HG2409UP-NF
- Description：ANTOMNI 2.4GHZ 8.5DBI
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：Bluetooth, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.4GHz
- Frequency Range：-
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：-
- Return Loss：-
- Gain：9dBi
- Features：-
- Termination：N Type Female
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Mast Mount
- Height (Max)：28.300" (718.82mm)
- Applications：802.11b/g/n, Bluetooth, WLAN
- Power - Max：-
Antennas RF datasheet and documents for HG2409UP-NF
Antennas RF Overview
The HG2409UP-NF is an omnidirectional RF antenna designed for the 2.4 GHz ISM band, supporting IEEE 802.11b/g/n and Bluetooth protocols. It features a gain of 9 dBi with a VSWR of 1.5. The connector type is N-type female. Constructed with collinear brass elements inside a UV-stable white fiberglass radome, it supports all-weather operation. Maximum power handling is not explicitly quantified in the provided text beyond general series descriptions.
Antennas RF Feature Summary
- Omnidirectional radiation pattern optimized for wireless LAN coverage
- Durable UV-stable white fiberglass radome housing for outdoor durability
- Collinear brass internal elements for signal performance
- Sealed end cap construction for weather resistance
Antennas RF Applications
- IEEE 802.11b/g/n wireless LANs
- Bluetooth connectivity systems
- Public wireless hotspot applications
Antennas RF Procurement Notes
Verify the specific part number HG2409UP-NF against official L-com documentation to confirm current availability and exact specifications. Ensure compatibility with existing N-type female connectors in the installation environment. Cross-reference datasheets for environmental ratings and mechanical dimensions prior to procurement to avoid integration issues.
Antennas RF Selection Notes
Select this model when an omnidirectional antenna is required for 2.4 GHz ISM band operations. The 9 dBi gain provides enhanced range compared to standard low-gain alternatives. The N-type female connector requires matching male connectors on the receiving equipment. Consider the fiberglass radome construction for installations exposed to direct sunlight or harsh weather conditions.
Antennas RF Part Context
This component belongs to the HyperGain MINI PRO series by L-com. The series is characterized as economical yet high-performance omnidirectional Wi-Fi antennas. The HG2409UP-NF variant specifically denotes the N-type female connector configuration within this product line, distinguishing it from other connector types like UHF or SMA variants.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided source material. Users should consult official L-com documentation for potential cross-references or updated models within the HyperGain series.
