HG2409Y-NF

Antennas RF Overview

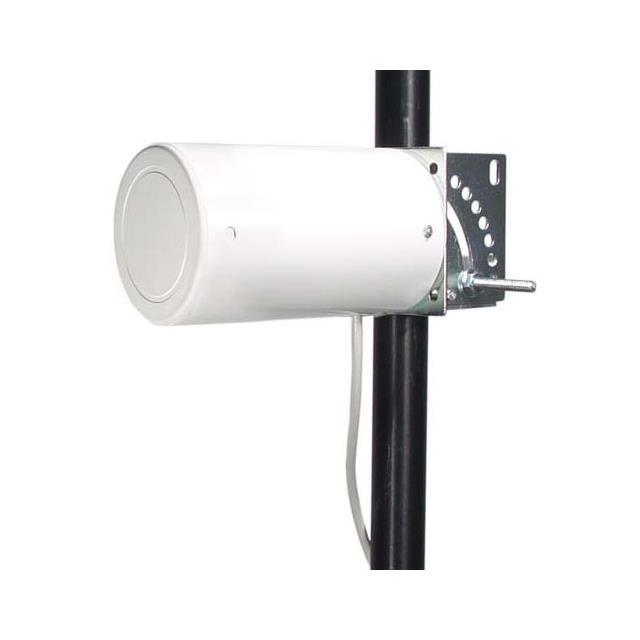

The HG2409Y-NF is a Yagi RF antenna manufactured by L-com, designed for the 2.4 GHz to 2.5 GHz frequency range with a center frequency of 2.45 GHz. It provides a gain of 9 dBi and supports IEEE 802.11b/g, Bluetooth, ISM, Wi-Fi, and WLAN applications. The antenna features an N-Female connector and utilizes bracket mounting for installation. Key electrical specifications include a Voltage Standing Wave Ratio (VSWR) of 1.5 and a maximum power handling capacity of 50 W. The physical dimensions reach a maximum height of 6.000 inches (152.40 mm).

Antennas RF Feature Summary

• High-gain directional radiation pattern optimized for point-to-point or multipoint links.
• Robust construction suitable for outdoor environments with IP-rated radome protection.
• Integrated bracket mounting system for secure pole or mast attachment.

Antennas RF Applications

• Wi-Fi and WLAN network infrastructure deployment
• Bluetooth device connectivity extensions
• Industrial ISM band communication systems

Antennas RF Procurement Notes

Verify the specific connector gender configuration required for your system integration, as male and female variants exist within the same product family. Confirm environmental rating requirements against the datasheet specifications before finalizing the order. Ensure that the mounting hardware aligns with the bracket design parameters provided in the official documentation to maintain structural integrity during operation.

Antennas RF Selection Notes

Select this model when directional gain is prioritized over omnidirectional coverage in the 2.4 GHz spectrum. The 9 dBi gain offers a balance between range and beamwidth for medium-distance links. Consider the N-Female interface compatibility with existing radio equipment. Evaluate the 50 W power rating against transmitter output levels to ensure safe operational margins without exceeding component limits.

Antennas RF Part Context

This component belongs to L-com's HyperGain series, which focuses on high-performance RF solutions for wireless networking. The HG2409Y-NF serves as a directional alternative to omnidirectional antennas, providing enhanced signal focus. It complements other L-com products by offering specialized mounting and connector options tailored for professional wireless installations.

Antennas RF Replacement Considerations

HG2409Y-NF-M: Identical technical specifications but utilizes an N-Male connector instead of N-Female. Verify connector gender compatibility with the mating port on the target radio or access point before substitution to ensure proper physical connection and signal transmission.
