HG2409Y-RTP

Antennas RF Overview

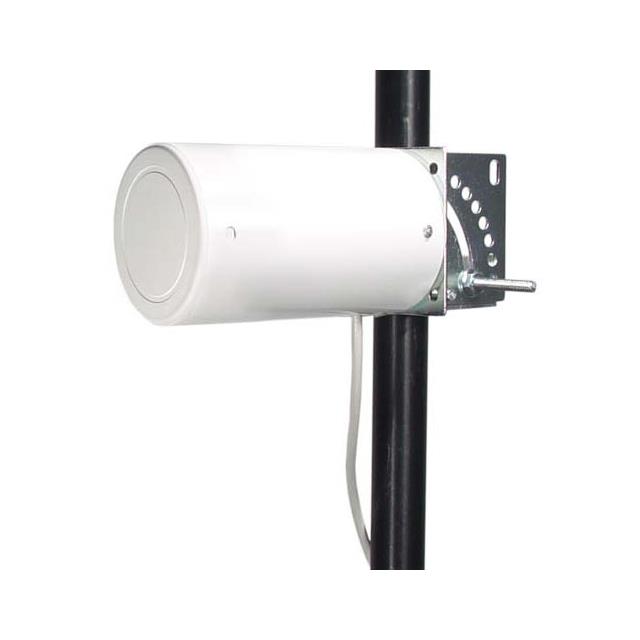

The L-com HG2409Y-RTP is a 2.4 GHz Yagi-Uda directional antenna designed for wireless signal enhancement and focused transmission. It features a 9 dBi gain rating, providing strong signal focusing capabilities to improve long-range communication performance. The unit includes a 12-inch (0.3-meter) cable terminated with an RP-TNC reverse-polarity connector. Constructed with polymer housing, it supports horizontal and vertical polarization and operates at a power rating of 50 W. This component is engineered for reliable integration into RF systems requiring high-directionality within the ISM band.

Antennas RF Feature Summary

• Directional Yagi-Uda design for focused signal transmission
• High gain capability for extended range communication
• Reverse-polarity connector compatibility
• Dual polarization support

Antennas RF Applications

• Wireless LAN (WLAN) point-to-point links
• Industrial automation wireless monitoring
• Robotics communication systems
• Long-range IoT sensor networks

Antennas RF Procurement Notes

Verify that the RP-TNC connector matches the device port polarity, as standard TNC connectors are incompatible with reverse-polarity interfaces. Confirm the operating frequency aligns with the 2.4 GHz ISM band requirements. Ensure the 50 Ohm impedance specification is compatible with the system's RF chain. Check physical dimensions against installation space constraints due to the fixed 12-inch cable length.

Antennas RF Selection Notes

Select this model when directional gain is required over omnidirectional coverage. The 9 dBi rating suits applications needing focused beamwidth rather than broad area coverage. Consider the RP-TNC interface for existing reverse-polarity infrastructure. Evaluate the 50 W power handling for high-output transmitter environments. Compare against lower-gain alternatives if shorter range or different form factors are acceptable.

Antennas RF Part Context

This antenna belongs to the L-com HyperLink series, which focuses on industrial-grade wireless connectivity solutions. The product line emphasizes durability and performance in demanding environments such as manufacturing and telecommunications. The HG2409Y-RTP specifically addresses the need for reliable directional links within the 2.4 GHz spectrum, complementing L-com's broader portfolio of Ethernet and RF components.

Antennas RF Replacement Considerations

HG2409RD-RTP: Rubber duck variant with similar specifications but different physical form factor.
