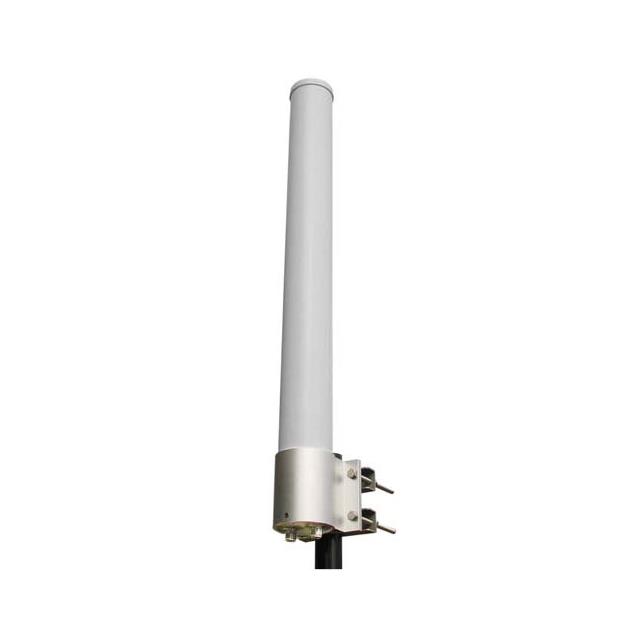

HG2410DPU

$222.99

Description：ANTOMNI 2.4GHZ 10DBI
Series：HG
Mfr：L-com
Package：Bag

SKU:04c4995706e6 Category: RF Antennas Brand: L-com

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HG2410DPU is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANTOMNI 2.4GHZ 10DBI. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for HG2410DPU

Description：ANTOMNI 2.4GHZ 10DBI
Series：HG
Mfr：L-com
Package：Bag
RF Family/Standard：Cellular, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.45GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：1.8
Return Loss：-
Gain：10dBi
Features：-
Termination：N Type Female (2)
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Mast Mount
Height (Max)：31.600" (802.64mm)
Applications：802.11b/g/n, Wi-Fi, WiMax, WISP, WLAN
Power - Max：100 W

Antennas RF datasheet and documents for HG2410DPU

HG2410DPU

Antennas RF Overview

The HG2410DPU is a dual-polarity omnidirectional antenna designed for the 2.4 GHz frequency band, specifically supporting MIMO and 802.11n standards. It features a high gain of 10 dBi and integrates both vertical and horizontal polarization within a single enclosure. The unit utilizes N-type female connectors for connectivity and includes an integrated bulkhead connector for mounting. This configuration allows for efficient signal transmission in point-to-multipoint applications while maintaining professional quality standards.

Antennas RF Feature Summary

Combines vertical and horizontal polarization with high gain in a single enclosure
Designed primarily for MIMO point-to-multipoint applications in the 2.4 GHz frequency band
Features an integrated bulkhead connector for secure installation

Antennas RF Applications

MIMO point-to-multipoint wireless communications
802.11n network infrastructure
2.4 GHz band signal distribution

Antennas RF Procurement Notes

Verify that the specific order matches the HG2410DPU model to ensure dual-polarity functionality. Confirm connector types are N-type female as specified. Check for bulkhead mounting requirements during installation planning. Ensure compatibility with existing 2.4 GHz MIMO systems before deployment.

Antennas RF Selection Notes

Select this model when dual-polarization is required for enhanced MIMO performance. It is suitable for scenarios needing high gain in a compact form factor. Consider the integrated bulkhead mount for fixed installations. Compare against single-polarity alternatives if polarization diversity is not needed.

Antennas RF Part Context

This component belongs to L-com's HyperLink Wireless series, which focuses on high-quality connectivity solutions. The HG2410DPU represents a specialized antenna solution for industrial and commercial wireless networks. It complements other L-com RF products by providing robust signal handling capabilities.
