HG2411UDT-PRO

Antennas RF Overview

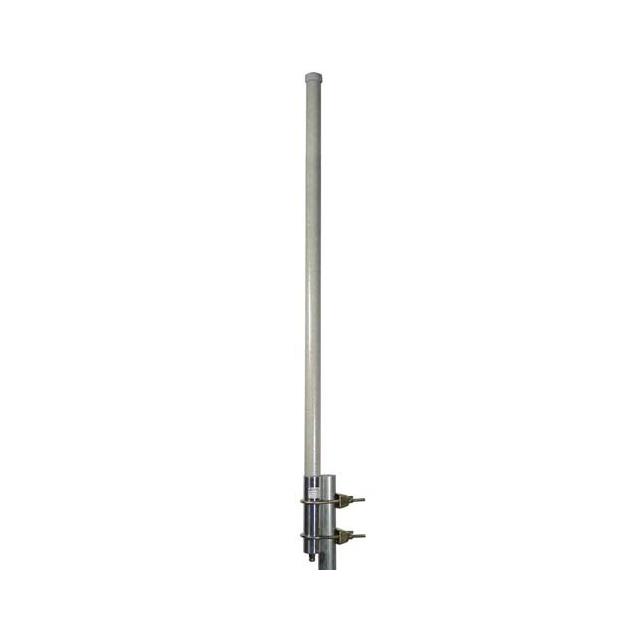

The HG2411UDT-PRO is a professional-grade omnidirectional antenna designed for the 2.4 GHz ISM band, specifically supporting 802.11b/g Wi-Fi and WLAN applications. It features an electrical gain of 11 dBi and incorporates an 8-degree down-tilt to optimize coverage for commercial installations. The unit operates at a 50-ohm impedance and utilizes an N-type female connector for secure attachment. This HyperGain series component provides reliable RF performance with a straight whip design suitable for bracket mounting in structured wireless environments.

Antennas RF Feature Summary

• Omnidirectional radiation pattern with 8-degree electrical down-tilt
• High gain performance rated at 11 dBi
• Professional grade construction for commercial use
• N-type female connector interface

Antennas RF Applications

• Commercial Wi-Fi network deployments
• WLAN infrastructure installation
• ISM band signal transmission
• Bracket-mounted antenna setups

Antennas RF Procurement Notes

Verify the specific datasheet version from Infinite Electronics or L-com to confirm mechanical dimensions and environmental ratings. Ensure compatibility with existing N-type female ports on access points or radios. Check for any regional regulatory compliance requirements regarding the 2.4 GHz band usage before final procurement decisions.

Antennas RF Selection Notes

Select this model when high-gain omnidirectional coverage with downward tilt is required for commercial Wi-Fi networks. The 11 dBi rating suits scenarios needing extended range compared to standard 2-7 dBi units. The N-type connector ensures broad compatibility with common enterprise wireless hardware. Consider the physical size and mounting requirements for the intended bracket location.

Antennas RF Part Context

This component belongs to the L-com HyperGain PRO series, which focuses on professional-grade connectivity solutions. The HG2411UDT-PRO is part of a broader lineup including variants like the HG172706U-PRO, differing primarily in gain and tilt specifications. These antennas are manufactured by Infinite Electronics under the L-com brand for enterprise networking needs.

Antennas RF Replacement Considerations

The HG172706U-PRO is a related model offering 9 dBi gain with a 7-degree down-tilt. Substitution requires verifying if the slight reduction in gain and change in tilt angle meets the specific coverage requirements of the installation site.
