HG2412SY-NF

Antennas RF Overview

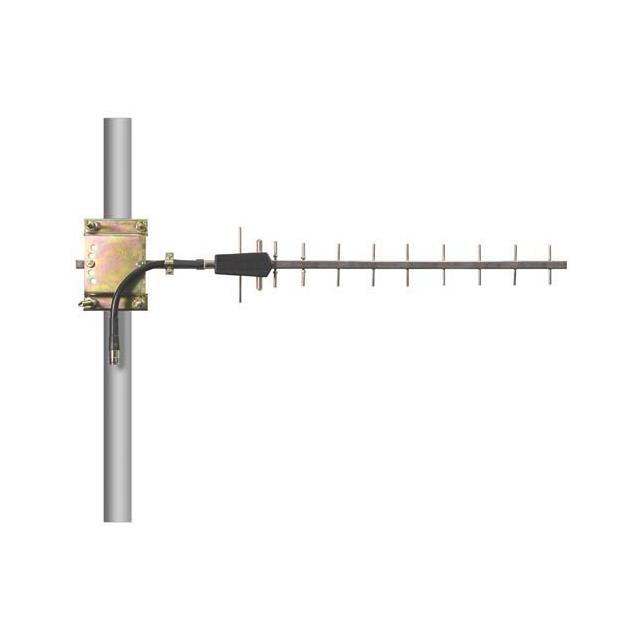

The L-com HG2412SY-NF is a 2.4 GHz Yagi-Uda antenna designed for wireless communication systems. It provides a gain of 12 dBi and features an N-type female connector with a 7-inch pigtail cable. The unit is constructed from stainless steel, including a 1/2-inch boom and 1/8-inch elements, ensuring durability. It operates within the 2.4-2.5 GHz range and supports applications such as WiFi, WLAN, Bluetooth, ISM, and MIMO systems.

Antennas RF Feature Summary

• Stainless steel construction for corrosion resistance and structural integrity
• Yagi-Uda directional design for focused signal transmission and reception
• Integrated 7-inch pigtail cable with N-type female interface

Antennas RF Applications

• WiFi and WLAN network installations
• Bluetooth connectivity systems
• ISM band industrial applications
• MIMO wireless infrastructure

Antennas RF Procurement Notes

Verify that the specific part number matches the stainless steel Yagi configuration with the N-female connector. Confirm the 7-inch pigtail length requirement against system constraints. Ensure compatibility with existing N-type ports on target devices. Check for any mounting hardware requirements not included in the standard package. Validate environmental ratings if outdoor deployment is planned.

Antennas RF Selection Notes

Select this model when directional gain is required at 2.4 GHz. The stainless steel body suits harsh environments. The N-female connector requires compatible male connectors or adapters. Consider the 7-inch cable length for installation flexibility. This antenna is suitable for point-to-point links where beamwidth and directivity are critical factors.

Antennas RF Part Context

This component belongs to L-com's RF antenna portfolio, specifically the Yagi series. It is distinct from omnidirectional models like the HG2412Y-NF. The HG2412SY-NF designation indicates the stainless steel variant. It serves as a passive RF transducer converting guided waves to free-space radiation.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify mechanical dimensions and connector polarity before considering alternative brands.
