Product Detailed Parameters
- Description：ANTOMNI 2.4GHZ 11.5DBI
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：Bluetooth, General ISM, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.45GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：12dBi
- Features：-
- Termination：N Type Female
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Bracket Mount
- Height (Max)：50.500" (128.27cm)
- Applications：802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN
- Power - Max：100 W
Download product information
Overview

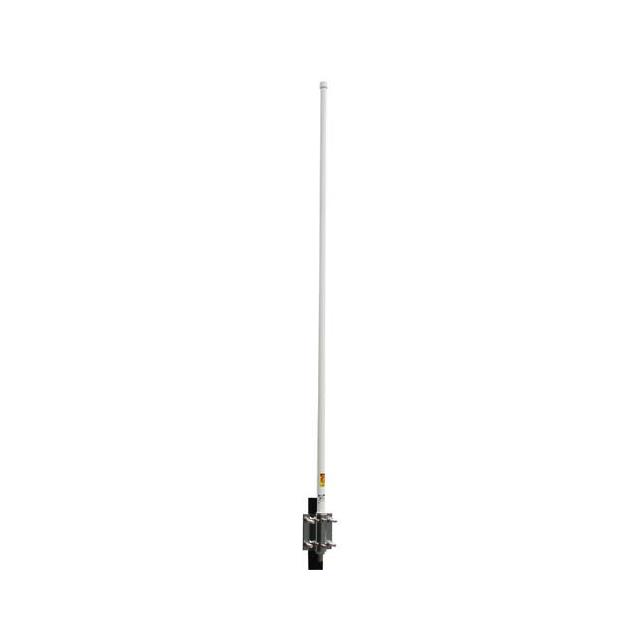

The HG2412UP-NF is a HyperGain omnidirectional antenna designed for the 2.4 GHz ISM band, specifically covering 2.4 GHz to 2.5 GHz with a center frequency of 2.45 GHz. It provides a gain of 12 dBi and supports a maximum input power of 100 W. The unit features an N-type female connector and utilizes a collinear brass element housed within a UV-stable white fiberglass radome. Key electrical specifications include a VSWR of 1.5 and a maximum height of 1.000 inch (25.40 mm).
Feature Summary
- Constructed with collinear brass elements enclosed in a durable, UV-stable white fiberglass radome for all-weather operation.
- Features an N-type female connector for secure RF interface connections.
- Designed as a compact and lightweight solution suitable for bracket mounting applications.
Applications
- IEEE 802.11b/g/n wireless LANs
- Bluetooth networks
- Public wireless hotspot deployments
Procurement Notes
Verify that the specific part number HG2412UP-NF matches the required 12 dBi gain and N-type female connector configuration. Confirm compatibility with the intended mounting environment due to the fiberglass radome construction. Ensure the system can handle the specified 100 W maximum input power rating without exceeding component limits.
Selection Notes
Select this model when a high-gain omnidirectional pattern is required for 2.4 GHz operations. The N-type connector is standard for robust industrial or outdoor installations. Consider the physical dimensions and weight if space constraints are critical, as the design prioritizes durability through its fiberglass radome structure.
Part Context
This component belongs to L-com's HyperGain series, which focuses on high-performance antennas for wireless communication systems. The HG2412UP-NF represents a specialized variant optimized for the 2.4 GHz spectrum, distinguishing itself from other models in the lineup by its specific 12 dBi gain profile and ruggedized environmental sealing.
Replacement Considerations
The HG2412SY-NF is a documented substitute within the same product family, offering similar 2.4 GHz coverage but utilizing a Yagi configuration rather than omnidirectional radiation patterns.
