Product Detailed Parameters
- Description：ANTYAGI 2.4GHZ 12DBI
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：Bluetooth, General ISM, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.45GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Yagi
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：12dBi
- Features：-
- Termination：Screw-Mount
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Mast Mount
- Height (Max)：11.200" (284.48mm)
- Applications：802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN
- Power - Max：50 W
Download product information
Overview

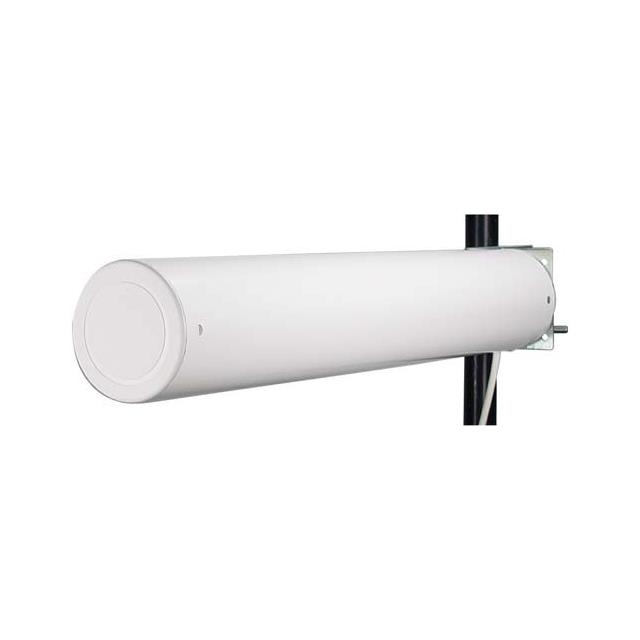

The HG2412Y-NF is a Yagi-style RF antenna manufactured by L-com, designed for operation in the 2.4 GHz frequency band. It features a gain of 12 dBi and utilizes an N-type female connector interface. The antenna supports multiple wireless standards including 802.11b/g/n, Bluetooth, ISM, Wi-Fi, and WLAN applications. Its physical construction includes a screw-mount mast mount configuration, suitable for fixed installation scenarios requiring directional signal transmission or reception.
Feature Summary
- Directional Yagi design providing 12 dBi gain at 2.4 GHz
- Supports 802.11b/g/n, Bluetooth, ISM, Wi-Fi, and WLAN protocols
- Equipped with N-type female connector for secure attachment
- Screw-mount mast mount configuration for stable installation
Applications
- Wi-Fi network point-to-point links
- Bluetooth range extension systems
- ISM band industrial communications
- WLAN infrastructure deployment
Procurement Notes
Verify that the required connector gender matches the N-type female specification on the HG2412Y-NF. Confirm compatibility with existing cabling assemblies that terminate in N-type male connectors. Ensure the mounting environment accommodates the screw-mount mast configuration. Check regulatory compliance requirements for the specific ISM or WLAN frequencies in the target region before procurement.
Selection Notes
Select this model when directional gain is required for 2.4 GHz applications rather than omnidirectional coverage. The 12 dBi gain makes it suitable for extending range in point-to-point links. Consider the N-type interface if connecting to standard RF test equipment or heavy-duty coaxial cables. Evaluate the mast mount requirement against available installation structures to ensure mechanical stability.
Part Context
This component belongs to L-com's RF antenna portfolio, specifically targeting the 2.4 GHz spectrum. It complements their broader range of wireless connectivity solutions, including cables, adapters, and other antennas. The product line focuses on industrial-grade reliability for wired and wireless interconnect needs.
Replacement Considerations
No public confirmed substitute part numbers are identified in the provided documentation. Users should verify electrical parameters such as gain, VSWR, and impedance matching when evaluating alternative models from other manufacturers.
