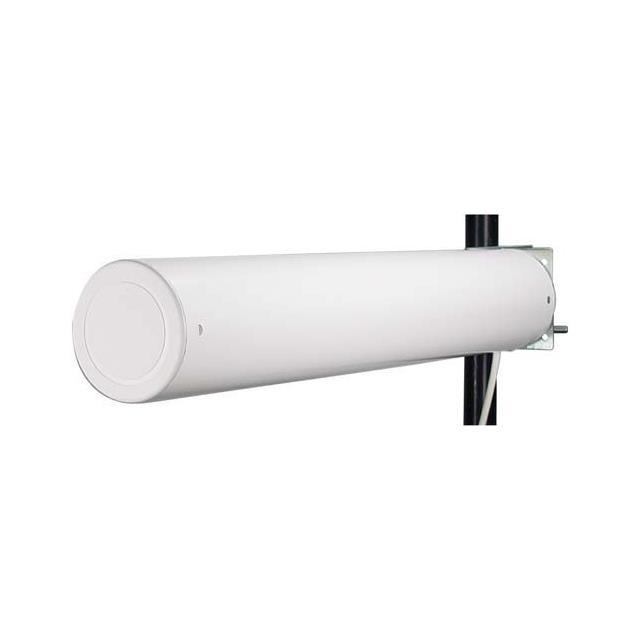

HG2412Y-NM is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANTYAGI 2.4GHZ 12DBI. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for HG2412Y-NM
- Description：ANTYAGI 2.4GHZ 12DBI
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：Bluetooth, General ISM, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.45GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Yagi
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：12dBi
- Features：-
- Termination：Screw-Mount
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Mast Mount
- Height (Max)：11.200" (284.48mm)
- Applications：802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN
- Power - Max：50 W
Antennas RF datasheet and documents for HG2412Y-NM
Antennas RF Overview
The HG2412Y-NM is a Yagi antenna manufactured by L-com, designed for operation in the 2.4 GHz frequency band. It provides a gain of 12 dBi and utilizes an N-type male connector interface. The unit features a screw-mount mast mount configuration, suitable for fixed directional wireless applications.
Antennas RF Feature Summary
- High-gain directional radiation pattern optimized for long-range signal transmission
- Robust mechanical construction with screw-mount mast mounting capability
- Standardized N-type male connector for secure cable attachment
Antennas RF Applications
- Wireless LAN (WLAN) point-to-point links
- Bluetooth network infrastructure
- ISM band communication systems
- 802.11b/g/n Wi-Fi deployments
Antennas RF Procurement Notes
Verify the specific connector gender and mounting hardware requirements against the system design before ordering. Confirm that the 2.4 GHz operational frequency aligns with the target application spectrum. Ensure the N-type male interface matches the receiving equipment port. Check local regulations regarding antenna gain limits for the intended deployment area.
Antennas RF Selection Notes
Select this model when high directivity and extended range are required at 2.4 GHz. The Yagi structure offers superior front-to-back ratio compared to omnidirectional alternatives. Consider environmental exposure levels as the mounting style supports outdoor installation. Evaluate cable length needs relative to the N-type connector placement.
Antennas RF Part Context
This component belongs to L-com's RF antenna portfolio, specifically targeting industrial and commercial wireless connectivity solutions. It complements their broader range of coaxial cables and connectors, providing complete link assembly options for network infrastructure projects requiring reliable directional transmission.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing N-type interfaces if considering alternative brands.
