Product Detailed Parameters
- Description：ANTYAGI 2.4GHZ 12DBI
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：Bluetooth, General ISM, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.45GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Yagi
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：12dBi
- Features：-
- Termination：Screw-Mount
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Mast Mount
- Height (Max)：11.200" (284.48mm)
- Applications：802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN
- Power - Max：50 W
Download product information
Overview

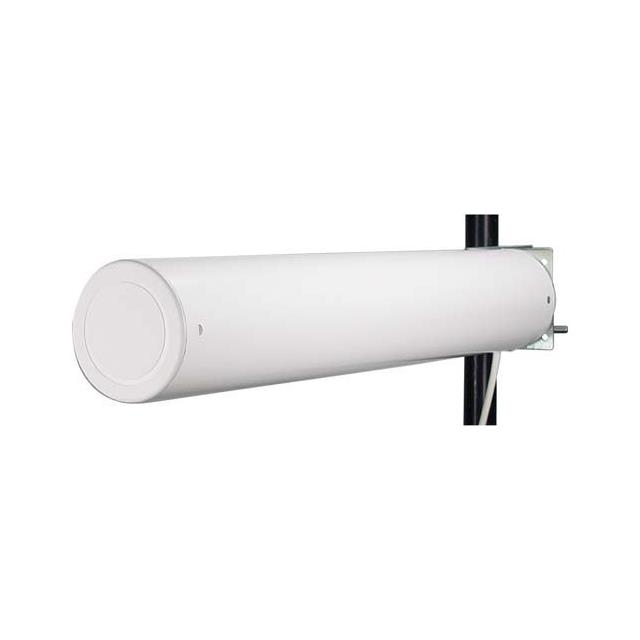

The HG2412Y-RTP is a Yagi antenna manufactured by L-com, designed for operation within the 2.4 GHz to 2.5 GHz frequency range. It provides a gain of 12 dBi and utilizes an RP-TNC connector for installation. The antenna supports applications including Bluetooth, ISM, Wi-Fi, and WLAN standards such as 802.11b/g. Its physical height is specified at a maximum of 8.200 inches (208.28 mm). The Voltage Standing Wave Ratio (VSWR) is rated at 2. The component is classified under the HG series and is currently in active production status.
Feature Summary
- High-gain directional performance optimized for long-range wireless signal transmission
- Yagi structure providing narrow beamwidth and enhanced directionality
- Integrated RP-TNC connector for direct device attachment
Applications
- Wi-Fi and WLAN network infrastructure
- Bluetooth connectivity systems
- ISM band industrial applications
- 802.11b/g compliant devices
Procurement Notes
Verify the specific datasheet version corresponding to the HG2412Y-RTP part number to confirm technical specifications. Ensure compatibility with RP-TNC interfaces on target equipment. Cross-reference manufacturer documentation for accurate environmental ratings and regulatory compliance details prior to integration.
Selection Notes
Select this model when directional coverage is required over omnidirectional alternatives. The 12 dBi gain suits scenarios needing extended range. Confirm that the receiving equipment supports the RP-TNC connector type. Validate that the operational frequency aligns with the 2.4 GHz to 2.5 GHz specification.
Part Context
This component belongs to the HG series of RF antennas from L-com. It is categorized under networking solution accessories and general-purpose RF antennas. The product line includes various configurations for different frequency bands and connector types, serving diverse wireless communication needs.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Verify exact mechanical and electrical compatibility before considering alternative models.
