Product Detailed Parameters
- Description：ANTPANEL 2.4GHZ 14DBI 90?
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：General ISM, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.45GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Sector
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：14dBi
- Features：-
- Termination：N Type Female (2)
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Bracket Mount
- Height (Max)：18.300" (464.82mm)
- Applications：802.11b/g/n, ISM, WLAN
- Power - Max：200 W
Download product information
Overview

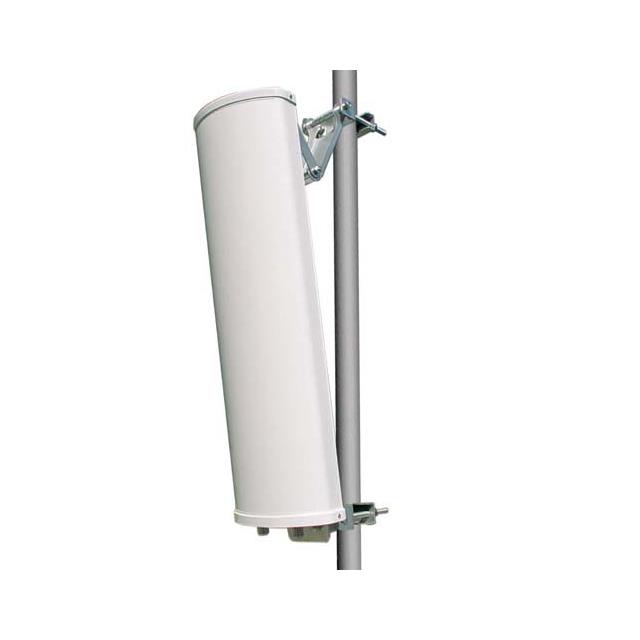

The L-com HG2414DP-090 is a HyperLink Wireless 2.4 GHz dual polarized sector antenna designed for MIMO applications. It provides 14 dBi gain with a 90-degree beamwidth and features vertical and horizontal polarization via a dual polarity feed system. The unit includes two N-Female connectors and utilizes a 10-degree down-tilt mast mounting bracket. Constructed with low-profile aesthetics and lightweight materials, it offers low aerodynamic load suitable for professional WiFi, WLAN, ISM, and wireless networking deployments.
Feature Summary
- Dual polarized design supporting MIMO configurations
- High gain performance with wide 90-degree coverage
- Integrated 10-degree down-tilt mounting bracket
- Low profile construction with lightweight materials
Applications
- Professional WiFi network infrastructure
- WLAN sector coverage expansion
- ISM band wireless communications
- MIMO antenna systems
Procurement Notes
Verify the specific connector type and polarization configuration against project requirements before ordering. Confirm that the included mounting hardware aligns with existing pole or mast specifications. Ensure compatibility with operating frequency bands to avoid signal degradation. Check local regulatory approvals for intended deployment regions.
Selection Notes
Select this model when high gain and wide sector coverage are required for 2.4 GHz environments. The dual polarization feature supports advanced MIMO setups for improved throughput. Consider the integrated tilt bracket for simplified installation angles. Evaluate weight constraints if mounting on lightweight structures due to the panel design.
Part Context
This component belongs to the HyperLink Wireless series of RF antennas from L-com. It is part of a lineup offering various sector and omni-directional options for wireless networking. The HG2414DP-090 specifically addresses needs for dual-polarized sector coverage in the 2.4 GHz spectrum.
Replacement Considerations
The HG2414SP-090 serves as a single-polarized alternative within the same product family. Verify polarization requirements before substituting, as the SP variant lacks dual-feed capabilities. Both models share similar form factors and mounting styles.
