Product Detailed Parameters
- Description：ANT 2.4GHZ 14DBI PATCH
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：Bluetooth, General ISM, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.45GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Flat Patch
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：14dBi
- Features：-
- Termination：-
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Screw Mount
- Height (Max)：1.000" (25.40mm)
- Applications：802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN
- Power - Max：25 W
Download product information
Overview

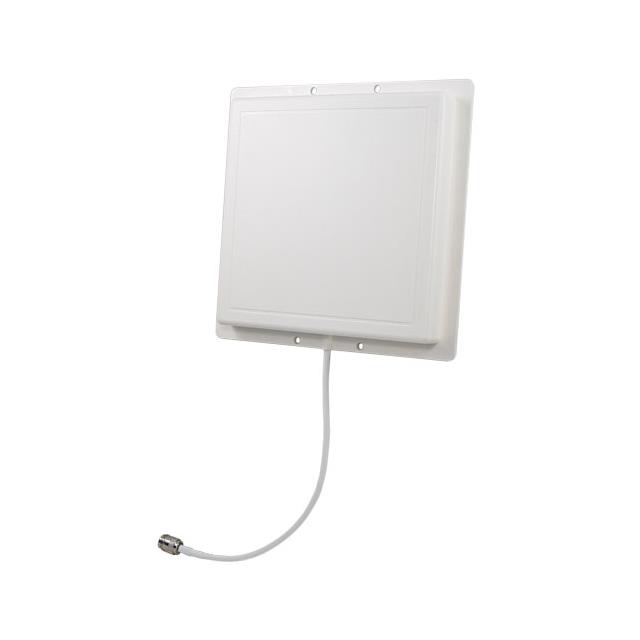

The L-com HG2414P-NF is a flat patch RF antenna designed for the 2.4GHz ISM band, specifically covering 2.4GHz to 2.5GHz with a center frequency of 2.45GHz. It provides a gain of 14dBi and maintains a VSWR of 1.5. The unit supports a maximum power of 25W and features a 50-ohm impedance. Measuring 8.5 inches square with a maximum height of 1.000 inch (25.40mm), it utilizes screw mount installation and includes an integral N-Female connector.
Feature Summary
- Features a UV-stable, UL flame-rated white plastic radome suitable for indoor and outdoor environments
- Incorporates low-loss solid brass elements and DC short lightning protection
- Designed as a high-performance directional antenna for Wi-Fi and WLAN applications
Applications
- 802.11b/g/n wireless networks
- Bluetooth connectivity systems
- ISM band industrial operations
- Wi-Fi infrastructure deployment
- WLAN coverage expansion
Procurement Notes
Verify the specific ordering suffix against the manufacturer's current documentation to ensure compatibility with required mounting hardware or cable configurations. Confirm that the standard lead time aligns with project schedules, as manufacturing delays may impact delivery. Ensure the procurement channel sources genuine components directly from authorized distributors to guarantee performance specifications and warranty validity.
Selection Notes
Select this model when a compact, high-gain directional solution is required for the 2.4GHz spectrum. The flat panel form factor allows for discreet aesthetic integration in both commercial and residential settings. Consider the 14dBi gain and narrow beamwidth for focused signal transmission over longer distances compared to omnidirectional alternatives.
Part Context
This component belongs to the L-com HyperLink Technologies series, which specializes in RF antennas for wireless communication. The HG2414P-NF variant represents a flat panel design optimized for the 2.4GHz ISM band. It serves as a specialized external antenna for enhancing Wi-Fi and WLAN signal integrity in structured environments requiring precise directional coverage.
Replacement Considerations
The HG2414P is the base model designation; verify if the -NF suffix denotes a specific non-flammable or regional compliance variation. No direct substitute part numbers are publicly confirmed in available documentation. Cross-reference physical dimensions and connector types before considering alternative manufacturers.
