HG2414P-RSP

Overview

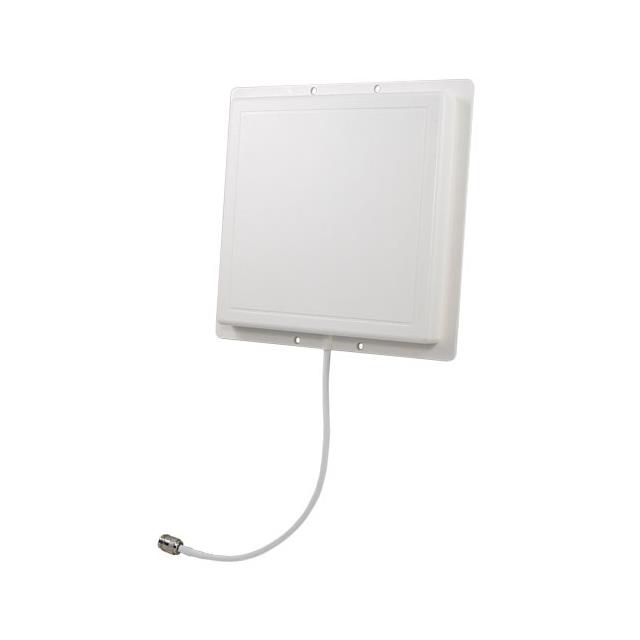

The L-com HG2414P-RSP is a high-performance directional flat patch antenna designed for the 2.4 GHz ISM band, specifically covering 2.4 GHz to 2.5 GHz with a center frequency of 2.45 GHz. It provides a gain of 14 dBi and supports a maximum power handling capacity of 25 W. The unit features a Type N female connector and utilizes screw mounting for secure installation. Constructed with low-loss solid brass elements and a UV-stable, UL flame-rated radome, it ensures durability in indoor and outdoor environments.

Feature Summary

• Directional flat patch design optimized for high-gain performance in the 2.4 GHz ISM band
• Durable construction featuring a UV-stable, UL flame-rated radome and low-loss solid brass elements
• Integrated DC short lightning protection for enhanced environmental resilience

Applications

• Indoor and outdoor Wi-Fi network deployments
• 802.11b/g/n wireless LAN systems
• Bluetooth connectivity infrastructure
• General ISM band applications requiring directional coverage

Procurement Notes

Verify the specific suffix against official L-com documentation to confirm connector type and cable specifications. Ensure compatibility with existing Type N female interfaces. Confirm lead times directly with authorized distributors as manufacturing schedules may vary. Validate that the selected variant meets local regulatory requirements for the 2.4 GHz ISM band operation.

Selection Notes

Select this model when high-directional gain is required for point-to-point or point-to-multipoint links within the 2.4 GHz spectrum. The 14 dBi gain makes it suitable for extending range beyond standard omnidirectional options. Consider the compact square form factor for aesthetic integration in both indoor and outdoor settings. Ensure the mounting surface allows for secure screw installation to maintain structural integrity.

Part Context

This component belongs to the HG series of HyperLink antennas from L-com, which are engineered for robust wireless communication solutions. The HG2414P series represents a line of high-performance directional flat patch antennas. These units are designed to replace older, less efficient antenna technologies by offering superior gain and durability through advanced materials like solid brass and UV-stable radomes.

Replacement Considerations

The HG2414P-NF serves as a related variant within the same product family, sharing identical electrical specifications and physical dimensions. Both models provide 14 dBi gain and operate within the 2.4 GHz band. Verify connector compatibility and mounting requirements when substituting between these specific part numbers.
